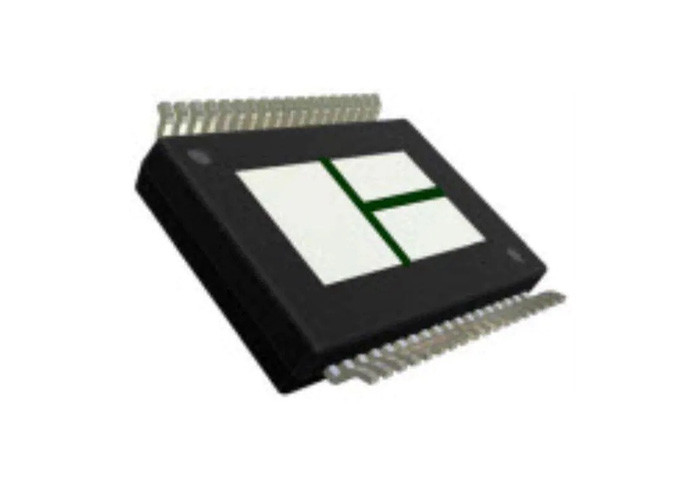

Automobile Chips VNH5019ATR-E Automotive fully integrated H-bridge motor driver

Automobile Chips VNH5019ATR-E Automotive fully integrated H-bridge motor driver

Product Description Of VNH5019ATR-E

The VNH5019ATR-E is a full bridge motor driver intended for a wide range of automotive applications. The device incorporates a dual monolithic high-side drivers and two low-side switches.

Specification Of VNH5019ATR-E

Features Of VNH5019ATR-E

• Output current: 30 A
• 3 V CMOS compatible inputs
• Undervoltage and overvoltage shutdown
• High-side and low-side thermal shutdown
• Cross-conduction protection
• Current limitation
• Very low standby power consumption
• PWM operation up to 20 kHz
• Protection against:
• Loss of ground and loss of VCC
• Current sense output proportional to motor current
• Charge pump output for reverse polarity protection
• Output protected against short to ground and short to VCC

Block diagram and pin description Of VNH5019ATR-E
