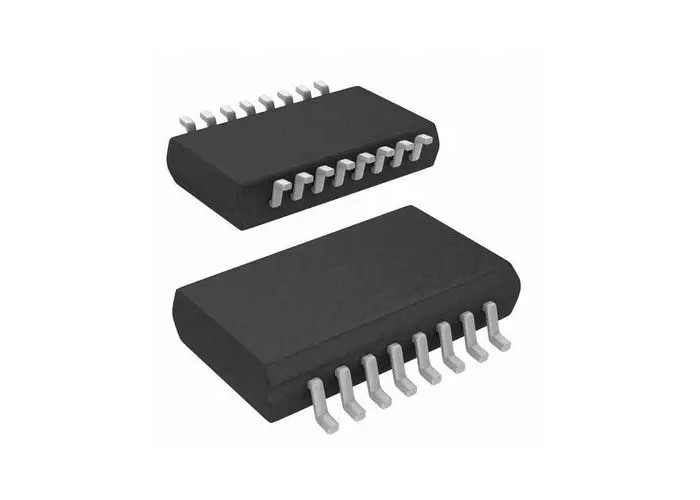

Integrated Circuit Chip ADUM5402ARWZ 2500Vrms 4 Channel 1Mbps General Purpose Digital Isolator

Integrated Circuit Chip ADUM5402ARWZ 2500Vrms 4 Channel 1Mbps General Purpose Digital Isolator

Product Description Of ADUM5402ARWZ

The ADUM5402ARWZ is quadchannel digital isolators with isoPower®, an integrated, isolated dcto-dc converter.
The ADUM5402ARWZ isolators provide four independent isolation channels in a variety of channel configurations and data rates.

Specification Of ADUM5402ARWZ

Features Of ADUM5402ARWZ

• isoPower integrated, isolated dc-to-dc converter

• Regulated 3.3 V or 5.0 V output

• Up to 500 mW output power

• Quad dc-to-25 Mbps (NRZ) signal isolation channels

• 16-lead SOIC package with 7.6 mm creepage

• High temperature operation: 105°C maximum

• High common-mode transient immunity: >25 kV/μs

• Safety and regulatory approvals

Applications Of ADUM5402ARWZ

• Industrial field bus isolation
• Power supply start-up bias and gate drives
• Isolated sensor interfaces
