Integrated Circuit Chip SCTW40N120G2VAG Power MOSFET N-Channel Transistors TO-247-3

Integrated Circuit Chip SCTW40N120G2VAG Power MOSFET N-Channel Transistors TO-247-3
Integrated Circuit Chip SCTW40N120G2VAG Power MOSFET N-Channel Transistors TO-247-3
Integrated Circuit Chip SCTW40N120G2VAG Power MOSFET N-Channel Transistors TO-247-3 Integrated Circuit Chip SCTW40N120G2VAG Power MOSFET N-Channel Transistors TO-247-3

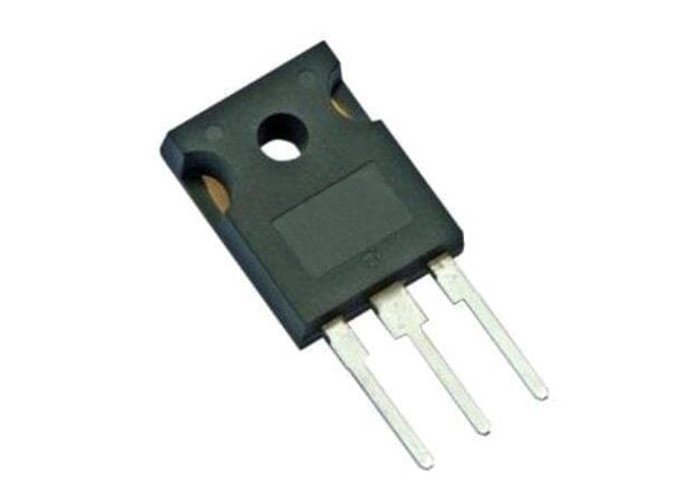

Large Image :  Integrated Circuit Chip SCTW40N120G2VAG Power MOSFET N-Channel Transistors TO-247-3

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: SCTW40N120G2VAG
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TO-247-3
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

Integrated Circuit Chip SCTW40N120G2VAG Power MOSFET N-Channel Transistors TO-247-3

Description
Part Number: SCTW40N120G2VAG Drive Voltage (Max Rds On, Min Rds On): 18V
Current - Continuous Drain (Id) @ 25°C: 33A (Tc) Package / Case: HiP-247-3
Drain To Source Voltage (Vdss): 1200 V Rds On - Drain-Source Resistance: 100 MOhms

Integrated Circuit Chip SCTW40N120G2VAG Power MOSFET N-Channel Transistors TO-247-3​



Product Description Of SCTW40N120G2VAG

SCTW40N120G2VAG is Automotive-grade silicon carbide Power MOSFET N-Channel Transistors, 1200 V, 33 A, 75 mΩ (typ., TJ = 25 °C) in an HiP247 package.



Specification Of SCTW40N120G2VAG

Part Number SCTW40N120G2VAG
Rds On (Max) @ Id, Vgs
105mOhm @ 20A, 18V
Vgs(th) (Max) @ Id
5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs
63 nC @ 18 V
Vgs (Max)
+22V, -10V
Input Capacitance (Ciss) (Max) @ Vds
1230 pF @ 800 V
Power Dissipation (Max)
290W (Tc)
Operating Temperature
-55°C ~ 200°C (TJ)
Mounting Type
Through Hole
Supplier Device Package
HiP247™
Package / Case
TO-247-3



Features Of SCTW40N120G2VAG

  • Very fast and robust intrinsic body diode
  • Extremely low gate charge and input capacitance
  • Very high operating junction temperature capability (TJ = 200 °C)
