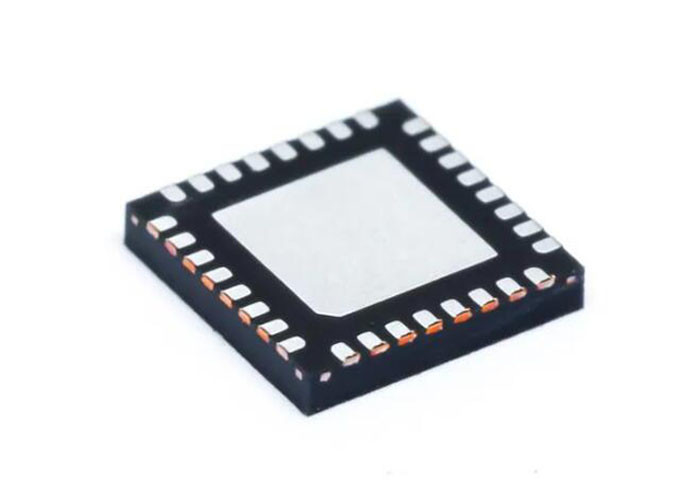

Integrated Circuit Chip DS90UB913ATRTVJQ1 1.4Gbps FPD-Link III Serializer WQFN-32

Integrated Circuit Chip DS90UB913ATRTVJQ1 1.4Gbps FPD-Link III Serializer WQFN-32​

Product Description Of DS90UB913ATRTVJQ1

DS90UB913ATRTVJQ1 offers an FPD-Link III interface with a high-speed forward channel and a bidirectional control channel for data transmission over a single coaxial cable or differential pair.

Specification Of DS90UB913ATRTVJQ1

Features Of DS90UB913ATRTVJQ1

25MHz to 100MHz input pixel clock support
Programmable data payload:
– 10-Bit payload up to 100MHz
– 12-Bit payload up to 75MHz
Continuous low latency bidirectional control interface channel with I2C support at 400kHz
Embedded clock with DC-balanced coding to support AC-coupled interconnects
Capable of driving up to 15m coaxial or 20m shielded twisted-pair cables
Robust Power-Over-Coaxial (PoC) operation
4 Dedicated general purpose input/output
1.8V, 2.8V, or 3.3V-compatible parallel inputs on serializer
Single power supply at 1.8V

Applications Of DS90UB913ATRTVJQ1

Automotive
– Surround View Systems (SVS)
– Front Cameras (FC)
– Rear View Cameras (RVC)
– Sensor fusion
– Driver Monitor Cameras (DMS)
– Remote satellite RADAR, ToF, and LIDAR sensors
Security and surveillance
Machine vision applications
