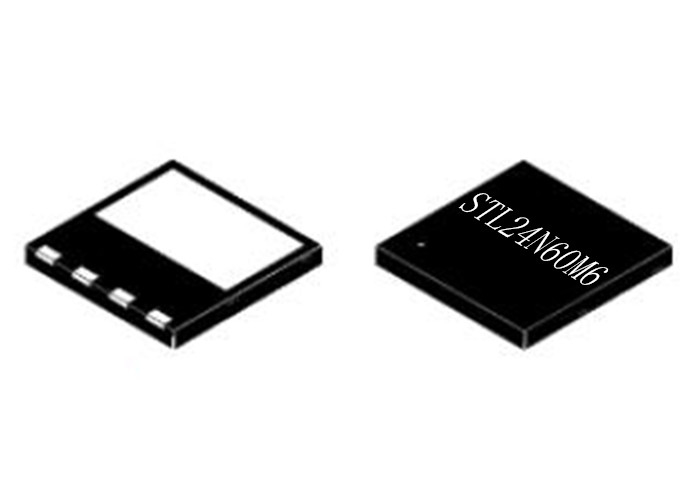

Integrated Circuit Chip STL24N60M6 Power MOSFET Transistors 600V 8PowerVDFN

Integrated Circuit Chip STL24N60M6 Power MOSFET Transistors 600V 8PowerVDFN
Integrated Circuit Chip STL24N60M6 Power MOSFET Transistors 600V 8PowerVDFN
Integrated Circuit Chip STL24N60M6 Power MOSFET Transistors 600V 8PowerVDFN Integrated Circuit Chip STL24N60M6 Power MOSFET Transistors 600V 8PowerVDFN

Large Image :  Integrated Circuit Chip STL24N60M6 Power MOSFET Transistors 600V 8PowerVDFN

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: STL24N60M6
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 8-PowerVDFN
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

Integrated Circuit Chip STL24N60M6 Power MOSFET Transistors 600V 8PowerVDFN

Description
Part Number: STL24N60M6 Gate Charge (Qg) (Max) @ Vgs: 23 NC @ 10 V
RDS(on) Max: 209 MΩ Vgs (Max): ±25V
Power Dissipation (Max): 109W (Tc) Input Capacitance (Ciss) (Max) @ Vds: 960 PF @ 100 V

Integrated Circuit Chip STL24N60M6 Power MOSFET Transistors 600V 8PowerVDFN



Product Description Of STL24N60M6
STL24N60M6 is Single FETs Power MOSFET Transistors, Low gate input resistance, the Operating Temperature is -55°C ~ 150°C (TJ).



Product Attributes Of STL24N60M6

Part Number STL24N60M6
FET Type
N-Channel
Technology
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)
600 V
Current - Continuous Drain (Id) @ 25°C
15A (Tc)
Drive Voltage (Max Rds On, Min Rds On)
10V
Rds On (Max) @ Id, Vgs
209mOhm @ 8.5A, 10V
Vgs(th) (Max) @ Id
4.75V @ 250µA
Operating Temperature -55°C ~ 150°C (TJ)



Feature Of STL24N60M6

  • Reduced switching losses
  • Lower RDS(on) per area vs previous generation
  • Low gate input resistance
  • 100% avalanche tested
  • Zener-protected



Applications Of STL24N60M6

  • Switching applications
  • LLC converters
  • Boost PFC converters



Switching Times Test Circuit For Resistive Load(STL24N60M6)

Integrated Circuit Chip STL24N60M6 Power MOSFET Transistors 600V 8PowerVDFN 0



FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
