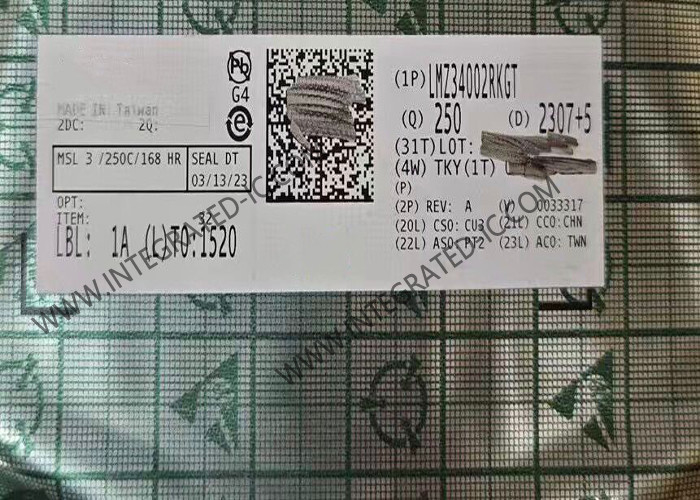

LMZ34002RKGT Integrated Circuit Chip 2A Negative Output Power Module B1QFN-41

LMZ34002RKGT Integrated Circuit Chip 2A Negative Output Power Module B1QFN-41
LMZ34002RKGT Integrated Circuit Chip 2A Negative Output Power Module B1QFN-41

Large Image :  LMZ34002RKGT Integrated Circuit Chip 2A Negative Output Power Module B1QFN-41

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: LMZ34002RKGT
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: B1QFN-41
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

LMZ34002RKGT Integrated Circuit Chip 2A Negative Output Power Module B1QFN-41

Description
Part Number: LMZ34002RKGT Topology: Buck-Boost
Number Of Outputs: 1 Output Output Current: 2 A
Quiescent Current: 1.3 UA Switching Frequency: 800 KHz

LMZ34002RKGT Integrated Circuit Chip 2A Negative Output Power Module B1QFN-41



Product Description Of LMZ34002RKGT

LMZ34002RKGT SIMPLE SWITCHER® power module is an easy-to-use, negative output voltage power module that combines a 15-W DC-DC converter with a shielded inductor, and passives into a low profile, QFN package. This total power solution allows as few as five external components and eliminates the loop compensation and magnetics part selection process.


Specification Of LMZ34002RKGT

Type
Non-Isolated PoL Module
Number of Outputs
1
Voltage - Input (Min)
4.5V
Voltage - Input (Max)
40V
Voltage - Output 1
-3 ~ -17V
Current - Output (Max)
2A
Applications
ITE (Commercial)
Features
Remote On/Off, OCP, OTP, UVLO
Operating Temperature
-40°C ~ 85°C
Efficiency
86%
Mounting Type
Surface Mount
Package / Case
41-BQFN Module
Size / Dimension
0.44" L x 0.36" W x 0.11" H (11.2mm x 9.2mm x 2.9mm)
Supplier Device Package
41-B1QFN (11x9)
Control Features
Enable, Active High


Features Of LMZ34002RKGT

Complete Integrated Power Solution Allows
Small Footprint, Low-Profile Design
Wide Input Voltage Range from 4.5V to 40V
Output Adjustable from –3V to –17V
Supplies up to 2A of Output Current
45V Surge Capability
Synchronizes to an External Clock
Adjustable Slow-Start
Programmable Undervoltage Lockout (UVLO)
Output Overcurrent Protection
Over Temperature Protection
Operating Temperature Range: –40°C to +85°C
Enhanced Thermal Performance: 14°C/W
Meets EN55022 Class B Emissions - Integrated Shielded Inductor


Applications Of LMZ34002RKGT
Industrial and Motor Controls
Automated Test Equipment
Bipolar Amplifiers in Audio/Video
High Density Power Systems
