Power Distribution Switches VNQ7140AJTR Quad Channel High Side Load Driver IC

Power Distribution Switches VNQ7140AJTR Quad Channel High Side Load Driver IC​

Product Description Of VNQ7140AJTR

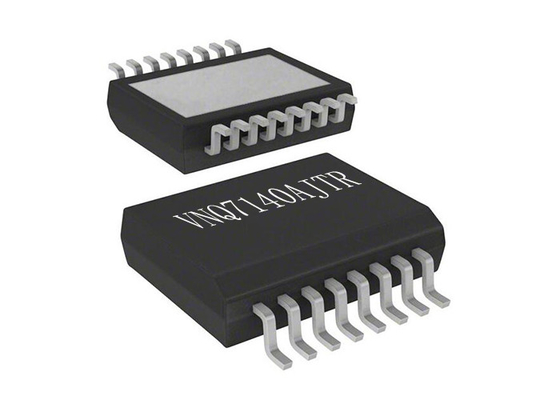

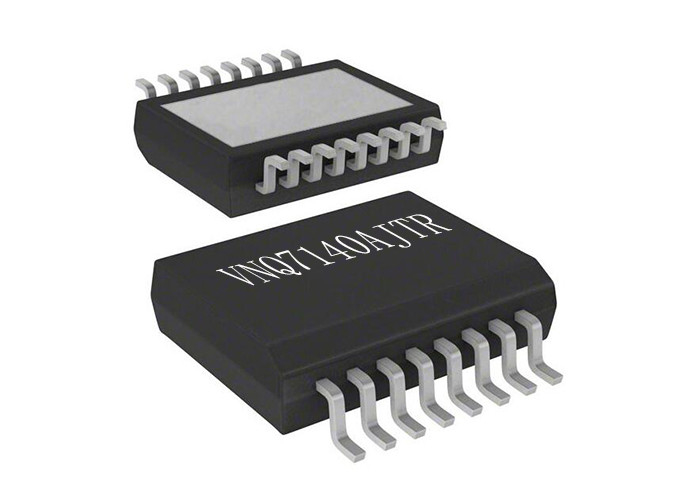

VNQ7140AJTR is a quad channel high-side driver manufactured, housed in PowerSSO-16 package.
VNQ7140AJTR is designed to drive 12 V automotive grounded loads through a 3 V and 5 V CMOS-compatible interface, providing protection and diagnostics.

Specification Of VNQ7140AJTR

Features Of VNQ7140AJTR

• Quad channel smart high-side driver with MultiSense analog feedback
• Very low standby current
• Compatible with 3 V and 5 V CMOS outputs
• Overload and short to ground (power limitation) indication
• Thermal shutdown indication
• OFF-state open-load detection
• Undervoltage shutdown
• Overvoltage clamp
• Load current limitation
• Self limiting of fast thermal transients

Applications Of VNQ7140AJTR

• All types of automotive resistive, inductive and capacitive loads
• Specially intended for automotive signal lamps (up to R10W or LED Rear Combinations)

Configuration Diagram Of VNQ7140AJTR(Top View)
