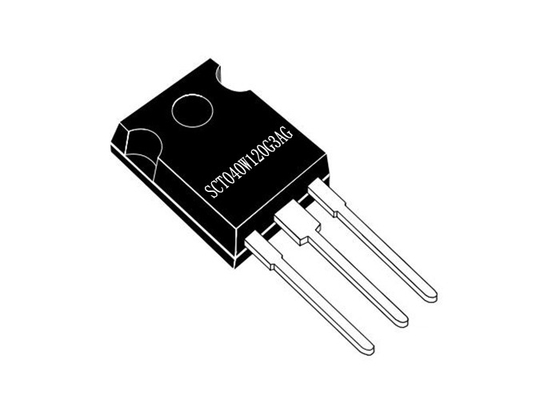

SIC Integrated Circuit Chip SCT040W120G3AG Silicon Carbide HiP247 Wide Bandgap Transistors

SIC Integrated Circuit Chip SCT040W120G3AG Silicon Carbide HiP247 Wide Bandgap Transistors
SIC Integrated Circuit Chip SCT040W120G3AG Silicon Carbide HiP247 Wide Bandgap Transistors
SIC Integrated Circuit Chip SCT040W120G3AG Silicon Carbide HiP247 Wide Bandgap Transistors SIC Integrated Circuit Chip SCT040W120G3AG Silicon Carbide HiP247 Wide Bandgap Transistors

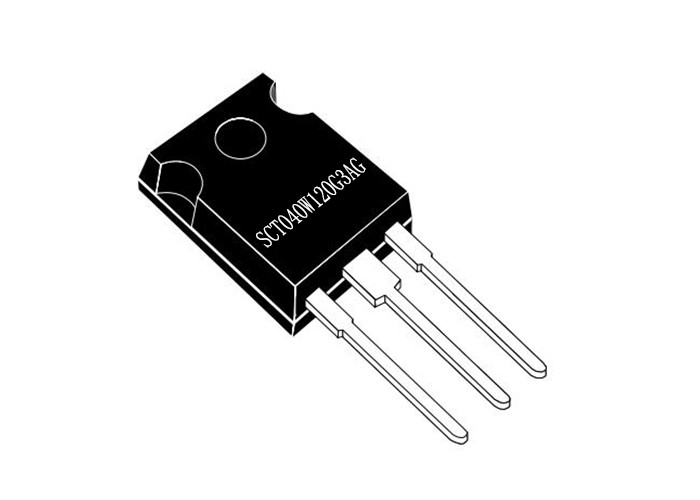

Large Image :  SIC Integrated Circuit Chip SCT040W120G3AG Silicon Carbide HiP247 Wide Bandgap Transistors

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: SCT040W120G3AG
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: HiP247
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

SIC Integrated Circuit Chip SCT040W120G3AG Silicon Carbide HiP247 Wide Bandgap Transistors

Description
Part Number: SCT040W120G3AG Power Dissipation (Max): 312W
Vgs(th) (Max) @ Id: 4.2V @ 5mA Gate Charge (Qg) (Max) @ Vgs: 56 NC @ 18 V
Drain Current (pulsed): 179 A Input Capacitance (Ciss) (Max) @ Vds: 1329 PF @ 800 V

SIC Integrated Circuit Chip SCT040W120G3AG Silicon Carbide HiP247 Wide Bandgap Transistors​



Product Description Of SCT040W120G3AG

SCT040W120G3AG silicon carbide Power MOSFET device. The device features a very low RDS(on) over the entire temperature range combined with low capacitances and very high switching operations, which improve application performance in frequency, energy efficiency, system size and weight reduction.



Specification Of SCT040W120G3AG

Part Number: SCT040W120G3AG FET Type: N-Channel
Drain To Source Voltage (Vdss): 1200 V Current - Continuous Drain (Id) @ 25°C: 40A (Tc)
Drive Voltage (Max Rds On, Min Rds On): 18V Rds On (Max) @ Id, Vgs: 54mOhm @ 16A, 18V



Package Outline Of SCT040W120G3AG

SIC Integrated Circuit Chip SCT040W120G3AG Silicon Carbide HiP247 Wide Bandgap Transistors 0



Other Electronic Components In Stock

Part Number Package
IRFU9N20 TO-251
IRFZ44 TO-263
IRG4BC15 TO-263
IRG4BC20 TO-220
IRG4BC30 TO-220
IRG4IBC10 TO-220F
