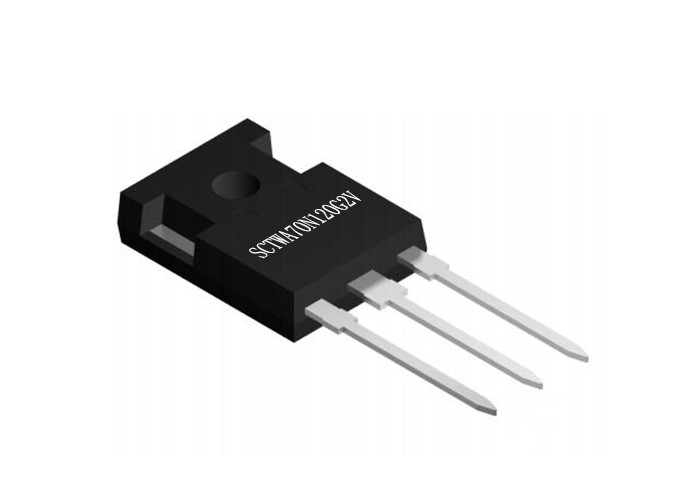

SIC Integrated Circuit Chip SCTWA70N120G2V Single FETs MOSFETs TO-247-4 Transistors

SIC Integrated Circuit Chip SCTWA70N120G2V Single FETs MOSFETs TO-247-4 Transistors
SIC Integrated Circuit Chip SCTWA70N120G2V Single FETs MOSFETs TO-247-4 Transistors
SIC Integrated Circuit Chip SCTWA70N120G2V Single FETs MOSFETs TO-247-4 Transistors SIC Integrated Circuit Chip SCTWA70N120G2V Single FETs MOSFETs TO-247-4 Transistors

Large Image :  SIC Integrated Circuit Chip SCTWA70N120G2V Single FETs MOSFETs TO-247-4 Transistors

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: SCTWA70N120G2V
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TO-247-4
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

SIC Integrated Circuit Chip SCTWA70N120G2V Single FETs MOSFETs TO-247-4 Transistors

Description
Part Number: SCTWA70N120G2V FET Type: N-Channel
Drain To Source Voltage (Vdss): 1200 V Current - Continuous Drain (Id) @ 25°C: 91A (Tc)
Drive Voltage (Max Rds On, Min Rds On): 18V Rds On (Max) @ Id, Vgs: 30mOhm @ 50A, 18V

SIC Integrated Circuit Chip SCTWA70N120G2V Single FETs MOSFETs TO-247-4 Transistors​



Product Description Of SCTWA70N120G2V

SCTWA70N120G2V is N-Channel Single FETs MOSFETs Transistors, Extremely low gate charge and input capacitance, package is TO-247-4.



Specification Of SCTWA70N120G2V

Part Number SCTWA70N120G2V
Vgs(th) (Max) @ Id
4.9V @ 1mA
Gate Charge (Qg) (Max) @ Vgs
150 nC @ 18 V
Vgs (Max)
+22V, -10V
Input Capacitance (Ciss) (Max) @ Vds
3540 pF @ 800 V
Power Dissipation (Max)
547W
Operating Temperature
-55°C ~ 200°C (TJ)



Applications Of SCTWA70N120G2V

  • DC-DC converters
  • Industrial motor control
  • Switching mode power supply



Other Electronic Components In Stock

Part Number Package
IRFU1010 TO-251
IRFU120 TO-251
IRFU3504 TO-251
IRFU3711 TO-251
IRFU4104 TO-251
IRFU4105 TO-251



FAQ

Q: Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample?Is the sample free?
A: Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
