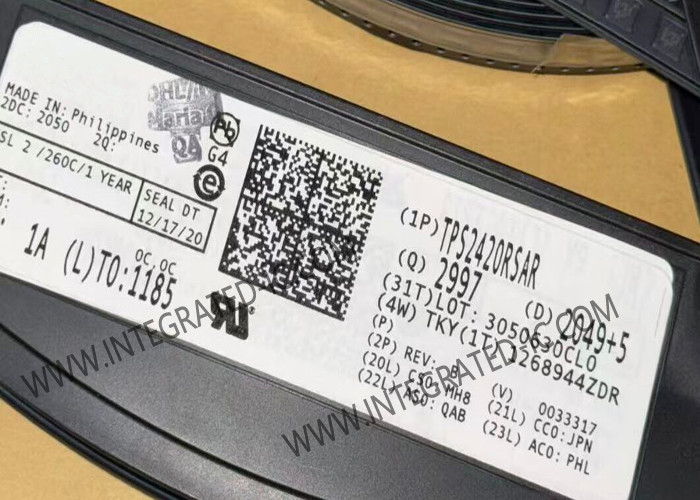

TPS2420RSAR Integrated Circuit Chip eFuse IC VQFN-16 Integrated FET Hot-Swap Controller

TPS2420RSAR Integrated Circuit Chip eFuse IC VQFN-16 Integrated FET Hot-Swap Controller​

Product Description Of TPS2420RSAR

TPS2420RSAR provides highly integrated load protection for applications up to 20-V. The maximum UV turn-on threshold of 2.9 V makes the TPS2420RSAR well suited to standard bus voltages as low as 3.3 V.
TPS2420RSAR device protects loads, minimizes inrush current, and safely shuts down in the event of a fault. The programmable fault current threshold starts the fault timer while allowing the current to pass to the load uninhibited. The programmable current limit threshold sets the maximum current allowed into the load, for both inrush and severe load faults. Both events use the programmable timer which inhibits all current to the load when it expires.

Specification Of TPS2420RSAR

Features Of TPS2420RSAR

Integrated 30-mΩ Pass MOSFET
Up to 20-V Bus Operation
Programmable Fault Current
Programmable Hard Current-Limit
Programmable Fault Timer
Internal MOSFET Power Limiting Foldback
Latching and Auto-Retry Operation
Analog Current Monitor Output
Powergood Output
Fault Output Indicator
4 mm × 4 mm QFN
–40°C to 125°C Junction Temperature Range

Applications Of TPS2420RSAR

RAID Arrays
Telecommunications
Plug-In Circuit Boards
Disk Drives
SSDs
PCIE
Fan Control
