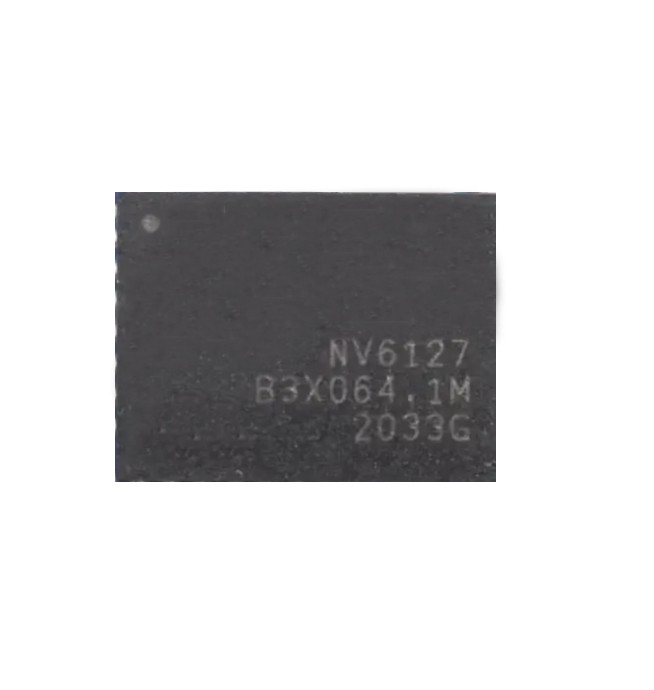

Fast Charging Chip NV6127 650V 12A Power Distribution Switches IC 30-QFN

Fast Charging Chip NV6127 650V 12A Power Distribution Switches IC 30-QFN

Description

The NV6127 is a thermally-enhanced version of the popular NV6117 650 V GaNFast™ power IC, optimized for high-frequency and soft-switching topologies. Monolithic integration of FET, drive and logic creates an easy-to-use digital in, power out’ high performance powertrain building block, enabling designers to create the fastest, smallest, most efficient integrated powertrain in the world.

Features

• Thermally-enhanced version of NV6117

• Large cooling pad

• Enhanced thermals when using CS resistor

• Monolithically-integrated gate drive

• Wide VCC range (10 to 30 V)

• Programmable turn-on dV/dt

• 200 V/ns dV/dt immunity

• 800 V Transient Voltage Rating

• 650 V Continuous Voltage Rating

• Low 125 mΩ resistance

• Zero reverse recovery charge

• ESD protection – 1 kV (HBM), 1 kV (CDM)

Applications

• AC-DC, DC-DC, DC-AC

• QR Flyback, PFC, AHB, Buck, Boost, Half bridge, Fullbridge, LLC resonant, Class D

• Wireless power, Solar Micro
