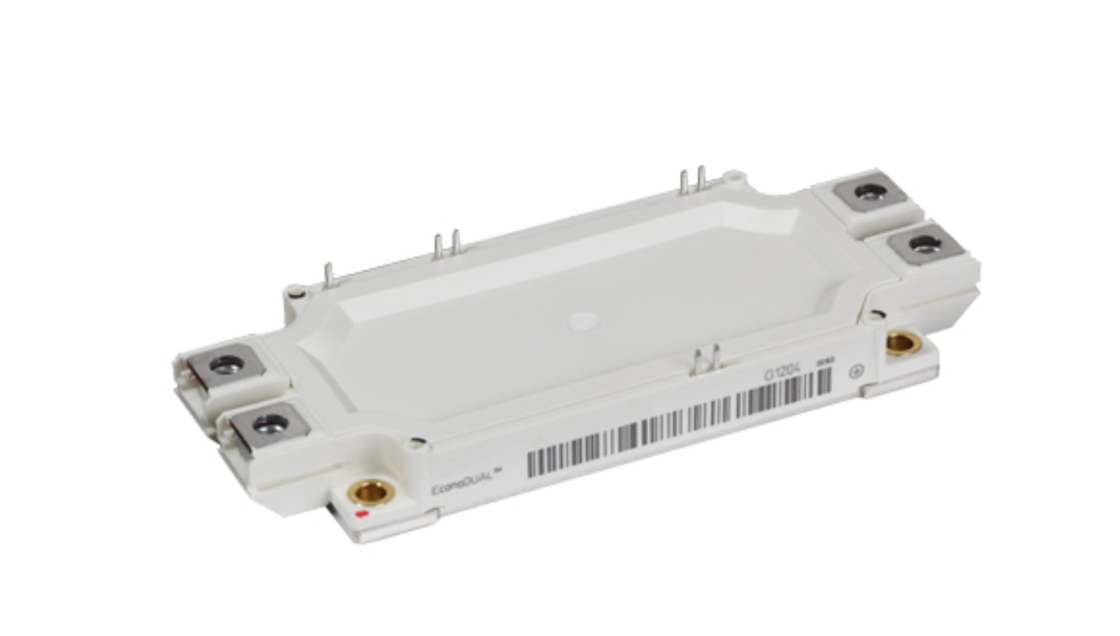

Medium Power H Bridge Igbt Module FF300R12ME7B11 IGBT 300A 1200V Dual

Medium Power FF300R12ME7B11 FF300R12ME7B11BPSA1 1200 V 300 A Dual IGBT Module

Overview

EconoDUAL™ 3 1200 V, 300 A dual TRENCHSTOP™ IGBT7 module with emitter controlled 7 diode, NTC and PressFIT contact technology.

Summary of Features

• Highest power density
• Tvj op = 175°C overload
• PressFIT control pins and screw power terminals
• Integrated NTC temperature sensor
• Isolated baseplate
• Compact and robust design with molded terminals
• solderable press-fit auxiliary terminals

Benefits

• Higher inverter output current for the same frame size
• Reduced system costs by simplification of the inverter systems
• Easy and most reliable assembly
• High inter-connection reliability
• suitable for press-in & soldering process

Applications

• Commercial, construction and agricultural vehicles (CAV)
• Motor control and drives
• Solutions for photovoltaic energy systems
• Uninterruptible Power Supply (UPS)

Diagrams

FAQ

Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
