Product Details:
|
| Part Number: | QPF4206TR13 | Product Type: | RF Front End |
|---|---|---|---|
| Noise Figure: | 2.1 DB | Gain: | 33 DB |
| Operating Frequency: | 2412 To 2484 MHz | Mounting Style: | SMD/SMT |
| Highlight: | WIFI 6 Chip 2.4GHz RoHS,QFN16 RF Front End,QPF4206 WIFI 6 Chip |
||

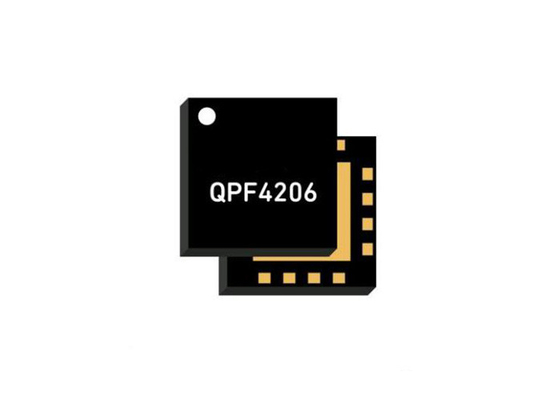

WIFI 6 Chip QPF4206TR13 2.4GHz WIFI 6 RF Front End Module QPF4206 QFN-16
Product Description
QPF4206TR13 is an integrated front end module (FEM) designed for Wi-Fi 6 (802.11ax) systems. The compact form factor and integrated matching minimizes layout area in the application.
QPF4206TR13 integrates a 2GHz power amplifier (PA), regulator, single pole two throw switch (SP2T), and a bypassable low noise amplifier (LNA).
Specification Of QPF4206TR13
| Part Number: | QPF4206TR13 | Product Type: | RF Front End |
|---|---|---|---|
| Noise Figure: | 2.1 DB | Gain: | 33 DB |
| Operating Frequency: | 2412 To 2484 MHz | Mounting Style: | SMD/SMT |
Features
Functional Block Diagram
