TPS7A1650-Q1 LDO Voltage Regulator IC with 5V Output, Ultralow Quiescent Current, and Wide Input Voltage Range

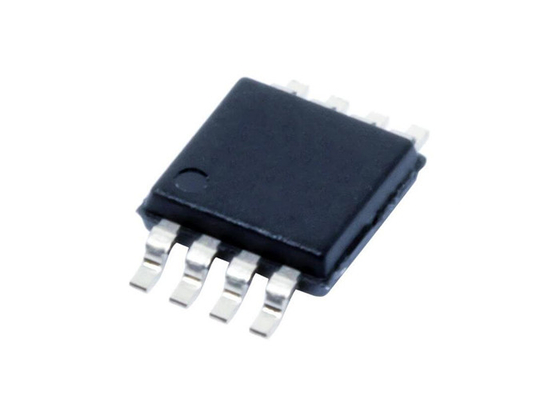

Large Image : TPS7A1650-Q1 LDO Voltage Regulator IC with 5V Output, Ultralow Quiescent Current, and Wide Input Voltage Range

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	TPS7A1650QDGNRQ1

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	MSOP8
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

TPS7A1650-Q1 LDO Voltage Regulator IC with 5V Output, Ultralow Quiescent Current, and Wide Input Voltage Range

Description

Part Number:	TPS7A1650QDGNRQ1	Output Voltage:	5 V
Output Current:	100 MA	Number Of Outputs:	1 Output
Dropout Voltage - Max:	500 MV	Mounting Style:	SMD/SMT
Highlight:	5V TPS7A1650QDGNRQ1 Automobile Chips , LDO Voltage Regulator IC MSOP8 , Voltage Regulator IC TPS7A1650-Q1 MSOP8

TPS7A1650QDGNRQ1 Integrated Circuit Chip 5V LDO Voltage Regulator IC TPS7A1650-Q1 MSOP8

Product Overview Of TPS7A1650

Automobile Chips TPS7A1650 LDO Voltage Regulators IC TPS7A1650-Q1 MSOP8

TPS7A1650 ultralow-power, low-dropout (LDO) voltage regulators offer the benefits of ultralow quiescent current, high input voltage, and miniaturized, high-thermal-performance packaging. TPS7A1650 devices are designed for continuous or sporadic (power backup) battery-powered applications where ultralow quiescent current is essential.

Specifications Of TPS7A1650

Mounting Style	SMD/SMT
Package / Case	MSOP-8
Output Voltage	5 V
Output Current	100 mA
Number of Outputs	1 Output
Polarity	Positive
Quiescent Current	5 uA
Input Voltage, Min	3 V
Input Voltage, Max	60 V
Output Type	Fixed
Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	+125 °C
Dropout Voltage	60 mV

Key Features Of TPS7A1650

Device Temperature Grade 1: -40°C to 125°C
Wide Input Voltage Range: 3 V to 60 V
Ultralow Quiescent Current: 5 µA
Quiescent Current at Shutdown: 1 µA
Output Current: 100 mA
Low Dropout Voltage: 60 mV at 20 mA
Power-Good With Programmable Delay
Current-Limit and Thermal Shutdown Protections
Stable With Ceramic Output Capacitors: ≥ 2.2 µF
Package: High-Thermal-Performance MSOP-8

Functional Block Diagram Of TPS7A1650

Applications Of TPS7A1650

Car Audio, Navigation, Infotainment
Other Automotive Systems
Power Supplies for Notebook PCs
Digital TVs
Private LAN Systems
