Product Details:
|
| Part Number: | WQ7033A | Frequency: | 800 KHz |
|---|---|---|---|
| Packge: | QFN | Type: | BT IC |
| Noise Reduction Depth: | 40dB | Noise Reduction Bandwidth: | 3.5KH |
| Highlight: | WQ7033A BT IC Audio SoC,WQ7033A BT IC 5.2 Dual Mode,BLE IC 5.2 Dual Mode Protocol Stack |
||

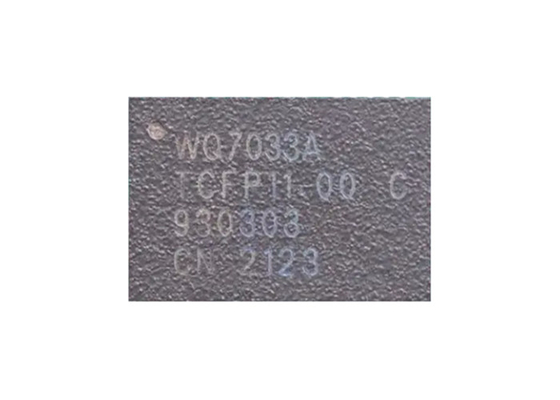

WQ7033A BT Audio SoC supporting BT BLE 5.2 dual mode protocol stack and BLE Audio
Product Description
The WQ7033A is a high specification BT audio SoC supporting BT/BLE 5.2 dual-mode protocol stack and BLE Audio with built-in high performance HiFi 5 DSP and NPU (Neural Network Processing Unit) to support complex multi-microphone uplink noise reduction algorithms and keyword wake-up while balancing low power consumption. The WQ7033A integrates Hybrid (FF+FB) ANC to support high-bandwidth, deep noise cancellation headphone applications. This family of chips offers rich interfaces and high integration for advanced TWS noise-canceling headsets and other low-power products that require sophisticated audio processing and voice AI capabilities.
Specification
|
BT function |
Supports BT/BLE 5.2 dual-mode protocol stack |
|
Active Noise Cancellation ANC |
Supports Adaptive Hybrid (FF+FB) ANC |
|
Uplink ambient noise cancellation (ENC) |
Supports single-microphone, dual-microphone, and multi-microphone noise reduction algorithms |
|
Keyword wake-up (VAD) |
Supports multi-level low-power keyword wake-up solution |
|
Ultra low power consumption |
Deep sleep: <9 μA @ 3.8 V |
Applications
Mono Headphones
Stereo Headphones
TWS Headphones
Mono Speakers
Stereo Speakers
