Product Details:
|
| Part Number: | IPT012N08N5 | Product Status: | Active |
|---|---|---|---|
| FET Type: | N-Channel | Technology: | MOSFET (Metal Oxide) |
| Mounting Type: | Surface Mount | Supplier Device Package: | PG-HSOF-8-1 |
Transistors IPT012N08N5 N-Channel 80V 300A 375W Surface Mount PG-HSOF-8-1
Features
Idealforhighfrequencyswitchingandsync.rec.
ExcellentgatechargexRDS(on)product(FOM)
Verylowon-resistanceRDS(on)
N-channel,normallevel
100%avalanchetested
Pb-freeplating;RoHScompliant
QualifiedaccordingtoJEDEC1)fortargetapplications
Halogen-freeaccordingtoIEC61249-2-21
Product Attributes
|
Drain to Source Voltage (Vdss) |
80 V |
|
Current - Continuous Drain (Id) @ 25°C |
300A (Tc) |
|
Drive Voltage (Max Rds On, Min Rds On) |
6V, 10V |
|
Rds On (Max) @ Id, Vgs |
1.2mOhm @ 150A, 10V |
|
Vgs(th) (Max) @ Id |
3.8V @ 280µA |
|
Gate Charge (Qg) (Max) @ Vgs |
223 nC @ 10 V |
|
Vgs (Max) |
±20V |
|
Input Capacitance (Ciss) (Max) @ Vds |
17000 pF @ 40 V |
|
Power Dissipation (Max) |
375W (Tc) |
|
Operating Temperature |
-55°C ~ 175°C (TJ) |

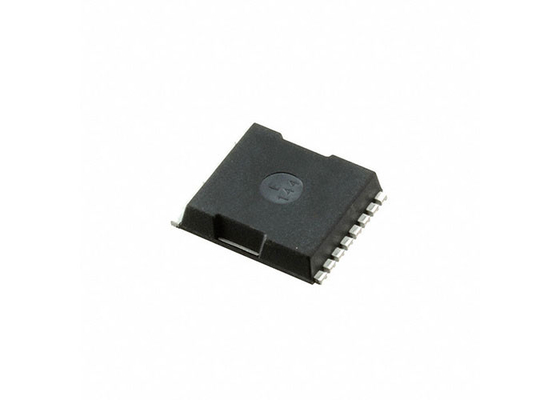

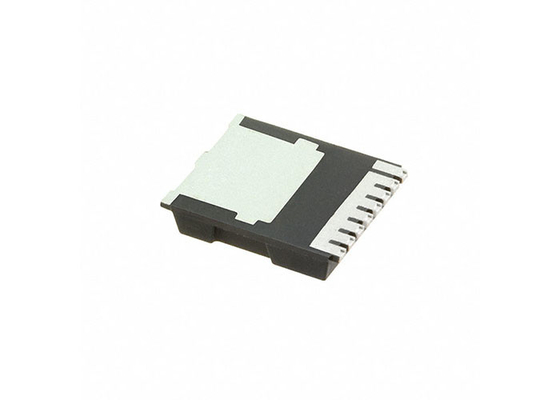

Product Images
Package Outlines
