2.4GHz WIFI 6 Chip QCA-6391-0-NSP265-TR-02-0 Highly Integrated SOC Chip

 2.4GHz WIFI 6 Chip QCA-6391-0-NSP265-TR-02-0 Highly Integrated SOC Chip

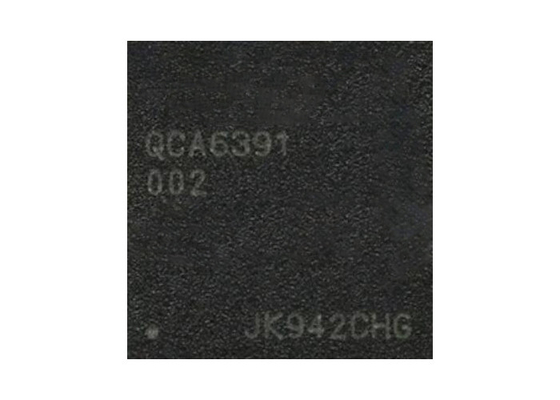

Product Description Of QCA-6391-0-NSP265-TR-02-0

QCA-6391-0-NSP265-TR-02-0 is a highly integrated SOC chip, mainly used in IOT applications, supporting 80211ax WI-FI and BT 5.1.
QCA-6391-0-NSP265-TR-02-0 supports 2.4G and 5G real-time dual-band operation, which is often referred to as DBS functionality. Features: Support 11ax protocol and backward compatible with 802.11a/b/g/n/ac Support 2x2 MU-MIMO Support dual MAC DBS function.

Specification Of QCA-6391-0-NSP265-TR-02-0

Features Of QCA-6391-0-NSP265-TR-02-0

• Highly integrated wireless local area network (WLAN) system-on-chip (SOC) for 2.4G/5G 802.11ax WLAN applications.
• Dual-stream spatial multiplexing up to 1800 Mbps data rate.
• Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz
• Supports low power PCIe interface for WLAN and UART/PCM interface for BT.
• Supports BT V5.1, BLE, ANT+ and be backwards compatible with BT 1.2, 2.X+ enhance data rate.
• Supports WLAN-BT coexistence and ISM-LTE coexistence.
• Supports BT for class1 and class2 power level transmissions without requiring an external PA.
• BT host digital interface: HCI UART (up to 3.2 Mbps) , PCM for audio data.

Applications Of QCA-6391-0-NSP265-TR-02-0

• Support WIFI 6 modules
• TV, medical, IPTV, in-car, etc.

FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
