Product Details:
|
| Part Number: | TPS56C230RJER | Voltage - Input (Min): | 4.5V |
|---|---|---|---|
| Voltage - Input (Max): | 18V | Voltage - Output (Min/Fixed): | 0.6V |
| Voltage - Output (Max): | 5.5V | Current - Output: | 12A |
| Highlight: | TPS56C230RJER Integrated Circuit Chip,TPS56C230RJER Integrated Circuit Chip Regulator IC,TPS56C230RJER Buck Switching Regulator IC |
||

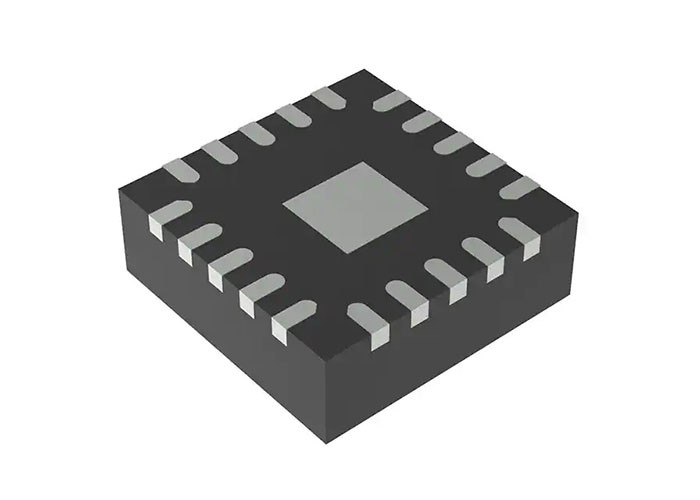

TPS56C230RJER Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 12A 20-VFQFN
Description
The TPS56C230RJER is a high efficiency synchronous buck converter with integrated FETs. System designers can use the device in a wide variety of applications since it draws low standby current and requires few external components.
The TPS56C230RJER employs D-CAP3 control that provides fast transient response and excellent line and load regulation with internal compensation. It also has a proprietary circuit that enables the device to support low equivalent series resistance (ESR) output capacitors such as specialty polymer and ultra-low ESR ceramic capacitors.
Features
Input voltage range: 4.5 V to 18 V
Output voltage range: 0.6 V to 5.5 V
Supports 12-A continuous output current
D-CAP3™ architecture control for fast transient response
±1% feedback voltage accuracy (25°C)
Integrated 17-mΩ and 5.9-mΩ FETs
Selectable Eco-mode™ and Forced Continuous Conductive Mode (FCCM) by MODE pin
500-kHz switching frequency
Adjustable soft-start time with default 1.2 ms
Integrated Power Good indicator
Built-in output discharge function
Cycle-by-cycle over current protection
Non-latched over-voltage, under-voltage, overtemperature and under voltage lock-out protections
-40°C to 125°C Operating Junction Temperature
20-pin 3.0-mm × 3.0-mm HotRod™ VQFN
Applications
Simplified Schematic
Pin Configuration and Functions
