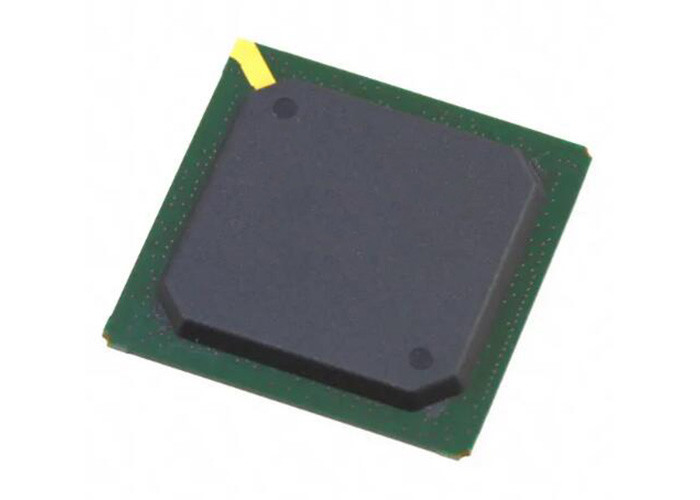

FPGA IC XC6SLX100-3FGG484C XC6SLX100 FBGA484 Field Programmable Gate Array

FPGA IC XC6SLX100-3FGG484C XC6SLX100 FBGA484 Field Programmable Gate Array

Product Description Of XC6SLX100-3FGG484C

XC6SLX100-3FGG484C is FPGA - Field Programmable Gate Array. Multiple efficient integrated blocks, Optimized selection of I/O standards, Staggered pads, Suspend mode maintains state and configuration with multi-pin wake-up, control enhancement.

Specification Of XC6SLX100-3FGG484C

Features Of XC6SLX100-3FGG484C

• 45 nm process optimized for cost and low power
• Hibernate power-down mode for zero power
• Up to 1,080 Mb/s data transfer rate per differential I/O
• Selectable output drive, up to 24 mA per pin
• 3.3V to 1.2V I/O standards and protocols
• Low-cost HSTL and SSTL memory interfaces
• Hot swap compliance
• Adjustable I/O slew rates to improve signal integrity
• DDR, DDR2, DDR3, and LPDDR support
• Data rates up to 800 Mb/s (12.8 Gb/s peak bandwidth)
• Multi-port bus structure with independent FIFO to reduce design timing issues

Simplification Diagram Of XC6SLX100-3FGG484C

Other Supply Product Types

FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
