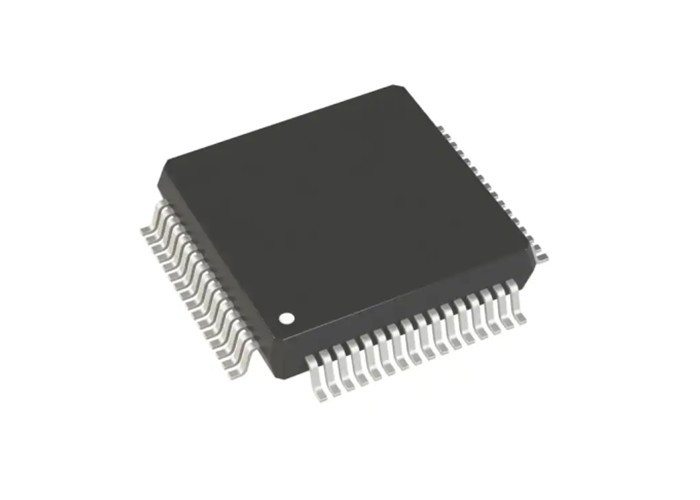

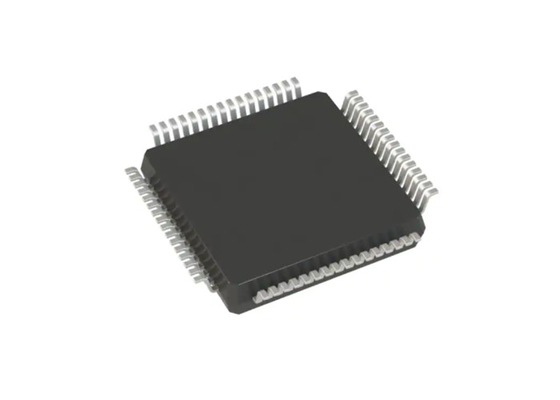

8 Channels AD7606BSTZ 16-Bit Synchronous Data Acquisition System LQFP64

8 Channels AD7606BSTZ 16-Bit Synchronous Data Acquisition System LQFP64

Product Description Of AD7606BSTZ

AD7606BSTZ are 16-bit, simultaneous sampling, analog-to-digital data acquisition systems (DAS) with eight, six, and four channels, respectively. Each part contains analog input clamp protection, a second-order antialiasing filter, a track-and-hold amplifier, a 16-bit charge redistribution successive approximation analog-to-digital converter (ADC), a flexible digital filter, a 2.5 V reference and reference buffer, and high speed serial and parallel interfaces.

AD7606BSTZ operate from a single 5 V supply and can accommodate ±10 V and ±5 V true bipolar input signals while sampling at throughput rates up to 200 kSPS for all channels. The input clamp protection circuitry can tolerate voltages up to ±16.5 V. The AD7606 has 1 MΩ analog input impedance regardless of sampling frequency. The single supply operation, on-chip filtering, and high input impedance eliminate the need for driver op amps and external bipolar supplies.
AD7606BSTZ antialiasing filter has a 3 dB cutoff frequency of 22 kHz and provides 40 dB antialias rejection when sampling at 200 kSPS. The flexible digital filter is pin driven, yields improvements in SNR, and reduces the 3 dB bandwidth.

Specification Of AD7606BSTZ

Features Of AD7606BSTZ

• 8/6/4 simultaneously sampled inputs
• True bipolar analog input ranges: ±10 V, ±5 V
• Pin to pin compatible with the state-of-the-art AD7606B
• Single 5 V analog supply and 2.3 V to 5 V VDRIVE
• Fully integrated data acquisition solution
• Analog input clamp protection
• Input buffer with 1 MΩ analog input impedance
• Second-order antialiasing analog filter
• On-chip accurate reference and reference buffer
• 16-bit ADC with 200 kSPS on all channels
• Oversampling capability with digital filter
• Flexible parallel/serial interface
• SPI/QSPI™/MICROWIRE™/DSP compatible
• Performance
• 7 kV ESD rating on analog input channels
• 95.5 dB SNR, −107 dB THD
• ±0.5 LSB INL, ±0.5 LSB DNL
• Low power: 100 mW
• Standby mode: 25 mW
• Temperature range: −40°C to +85°C
• 64-lead LQFP package

Applications Of AD7606BSTZ

• Power-line monitoring and protection systems
• Multiphase motor control
• Instrumentation and control systems
• Multiaxis positioning systems
• Data acquisition systems (DAS)

Functional Block Diagram Of AD7606BSTZ

Pin Configuration Of AD7606BSTZ
