PEX8764-AB80BIG Integrated Circuit Chip PCI Express Gen3 Switch IC with 64 Lanes and 16 Ports

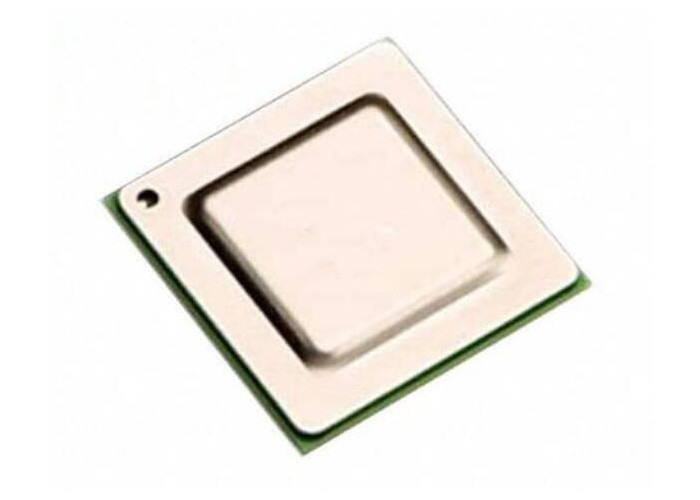

Large Image : PEX8764-AB80BIG Integrated Circuit Chip PCI Express Gen3 Switch IC with 64 Lanes and 16 Ports

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	PEX8764-AB80BIG

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	1156-FCBGA (35x35)
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

PEX8764-AB80BIG Integrated Circuit Chip PCI Express Gen3 Switch IC with 64 Lanes and 16 Ports

Description

Part Number:	PEX8764-AB80BIG	Upstream/Host Ports:	Up To 4 Upstream/Host Ports
Payload Size(Max):	2KB	Typical Power:	1 Watts
Size:	35mm X 35mm	Package:	1156-ball FCBGA Package
Highlight:	64 Lanes PCI Express Switch IC , 16 Ports PCI Express Switch IC , PCI Express Gen3 Integrated Circuit Chip

PEX8764-AB80BIG Integrated Circuit Chip

64 Lanes 16 Ports PCI Express Gen3 Switch IC

The PEX8764-AB80BIG offers Multi-Host PCI Express switching capability, enabling users to connect multiple hosts to their respective endpoints via scalable, high bandwidth, non-blocking interconnection. This solution is ideal for a wide variety of applications including servers, storage systems, and communications platforms.

Well suited for fan-out, aggregation, and peer-to-peer applications, the PEX8764-AB80BIG architecture supports packet cut-thru with a maximum latency of 150ns (x16 to x16).

Specifications

Part Number	PEX8764-AB80BIG
Applications	PCI Express®
Number of Channels	1
Features	Configurable
Operating Temperature	-40°C ~ 85°C
Package / Case	1156-BGA, FCBGA
Supplier Device Package	1156-FCBGA (35x35)

Key Features

PCI Express Base Specification, r3.0 (compatible with PCIe r1.0a/1.1 & 2.0)
PCI Power Management Spec, r1.2
Supports Access Control Services
Dynamic link-width control
Dynamic SerDes speed control
Cut-Thru with 150ns max packet latency
2KB Max Payload Size
Hot-Plug ports with native HP Signals
All ports hot-plug capable through I2C
SSC Isolation on up to 16 ports

Applications

Suitable for host-centric as well as peer-to-peer traffic patterns
