STPMIC1DPQR Integrated Circuit Chip with 2.8 V to 5.5 V Input Voltage Range 5.2 V Boost SMPS and 500 mA/1000 mA Power Switch

STPMIC1DPQR Integrated Circuit Chip with 2.8 V to 5.5 V Input Voltage Range 5.2 V Boost SMPS and 500 mA/1000 mA Power Switch
STPMIC1DPQR Integrated Circuit Chip with 2.8 V to 5.5 V Input Voltage Range 5.2 V Boost SMPS and 500 mA/1000 mA Power Switch STPMIC1DPQR Integrated Circuit Chip with 2.8 V to 5.5 V Input Voltage Range 5.2 V Boost SMPS and 500 mA/1000 mA Power Switch

Large Image :  STPMIC1DPQR Integrated Circuit Chip with 2.8 V to 5.5 V Input Voltage Range 5.2 V Boost SMPS and 500 mA/1000 mA Power Switch

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant

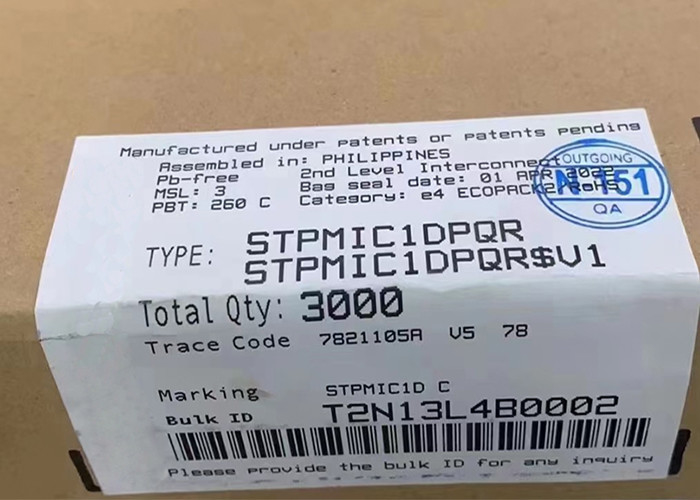

Model Number: STPMIC1DPQR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 44-WFQFN (5x6)
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

STPMIC1DPQR Integrated Circuit Chip with 2.8 V to 5.5 V Input Voltage Range 5.2 V Boost SMPS and 500 mA/1000 mA Power Switch

Description
Part Number: STPMIC1DPQR Input Voltage Range: 2.8 V To 5.5 V
Boost SMPS: 5.2 V / 1.1 A Boost SMPS USB OTG Compliant: 1 Power Switch 500 MA
General Purpose: 1 Power Switch 500 MA/1000 MA Size: 5mm X 6mm
Highlight:

2.8 V to 5.5 V input voltage range Integrated Circuit Chip

,

5.2 V Boost SMPS Power Management IC

,

500 mA/1000 mA power switch STPMIC1DPQR

STPMIC1DPQR Buck SMPS Converters - 44WFQFN Power Management IC
Product Overview
The STPMIC1DPQR is a fully integrated power management IC designed for high-integration application processor designs requiring low power consumption and high efficiency. This advanced IC integrates low-power features controlled via I²C and IO interface, making it ideal for powering application processors and external system peripherals including DDR, Flash memories, and other system devices.
Key Specifications
Parameter Value
Part Number STPMIC1DPQR
Applications General Purpose
Current Supply 1.2mA
Voltage Supply 2.8V ~ 5.5V
Operating Temperature -40°C ~ 105°C (TA)
Mounting Type Surface Mount

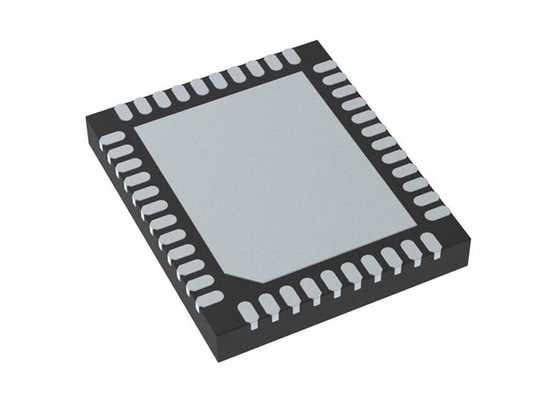

Package/Case 44-WFQFN Exposed Pad
Supplier Device Package 44-WFQFN (5x6)
Advanced Features
  • Wide input voltage range: 2.8V to 5.5V
  • 4 adjustable general purpose LDOs
  • DDR3 termination LDO with bypass mode capability
  • USB PHY supply LDO with automatic power source detection
  • Reference voltage LDO for DDR memory
  • 4 adjustable adaptive constant on-time (COT) buck SMPS converters
  • 5.2V/1.1A boost SMPS with bypass mode
  • USB OTG compliant 500mA power switch
  • General purpose 500mA/1000mA power switch
  • User programmable non-volatile memory (NVM)
  • I²C and digital IO control interface
Related Components in Stock
Part Number Package
PKH4111API DC-DC
PKJ4111API DC-DC
PKJ4113PI DC-DC
PKJ4319PI DC-DC
PKJ4610PI DC-DC
PKJ4713PI DC-DC
Frequently Asked Questions
Q: Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample? Is the sample free?
A: Yes, we support sample orders and small orders. Sample cost varies according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express shipping (DHL, FedEx, UPS, TNT, EMS) or your suggested forwarder. Products are securely packed, and we guarantee product safety.
Q: What about the lead time?
A: Stock parts ship within 5 working days. For non-stock items, we confirm lead time based on your order quantity.
