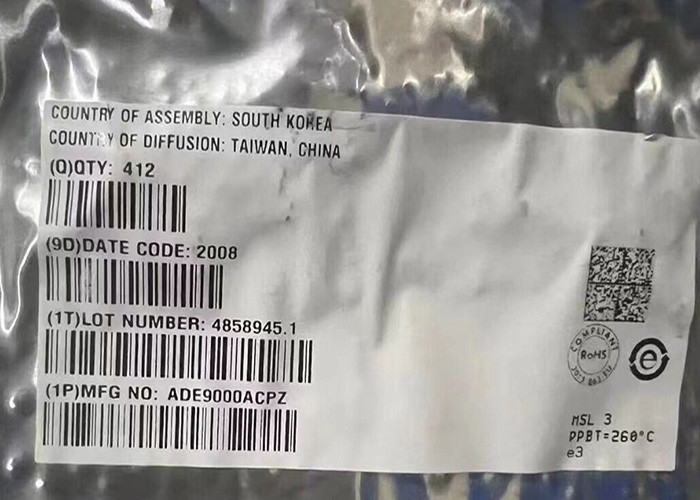

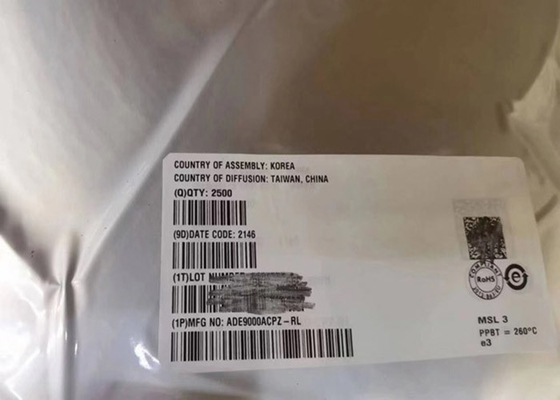

ADE9000ACPZ Integrated Circuit Chip 7 Channel Analog Front End with 101 dB SNR in 40-WFQFN Surface Mount

ADE9000ACPZ Integrated Circuit Chip 7 Channel Analog Front End with 101 dB SNR in 40-WFQFN Surface Mount
ADE9000ACPZ Integrated Circuit Chip 7 Channel Analog Front End with 101 dB SNR in 40-WFQFN Surface Mount

Large Image :  ADE9000ACPZ Integrated Circuit Chip 7 Channel Analog Front End with 101 dB SNR in 40-WFQFN Surface Mount

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: ADE9000ACPZ
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 40-WFQFN
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

ADE9000ACPZ Integrated Circuit Chip 7 Channel Analog Front End with 101 dB SNR in 40-WFQFN Surface Mount

Description
Part Number: ADE9000ACPZ SNR: 101 DB
Operating Supply Current: 15 MA Accuracy: 3 %
Input Voltage Range: 2.97 V To 3.63 V Unit Weight: 254 Mg
Highlight:

7 Channel Integrated Circuit Chip

,

101 dB SNR Analog Front End

,

40-WFQFN Surface Mount ADE9000ACPZ

ADE9000 Integrated Circuit Chip 7 Channel Analog Front End 40-WFQFN Surface Mount
Product Overview Of ADE9000

The ADE9000 is a highly accurate, fully integrated, multiphase energy and power quality monitoring device. Superior analog performance and a digital signal processing (DSP) core enable accurate energy monitoring over a wide dynamic range.

Specifications Of ADE9000
Part Number ADE9000ACPZ
Number of Channels 7
Voltage - Supply, Analog 3.3V
Voltage - Supply, Digital 3.3V
Mounting Type Surface Mount
Package / Case 40-WFQFN Exposed Pad, CSP
Supplier Device Package 40-LFCSP-WQ (6x6)
Key Features Of ADE9000
  • 7 high performance ADCs
  • 101 dB SNR
  • Wide input voltage range: ±1 V, 707 mV rms FS at gain = 1
  • Differential inputs
  • ±25 ppm/°C maximum channel drift (including ADC, internal VREF, PGA drift) enabling 10000:1 dynamic input range
  • Class 0.2 metrology with standard external components
  • Power quality measurements
  • Enables implementation of IEC 61000-4-30 Class S
  • VRMS ½, IRMS ½ rms voltage refreshed each half cycle
  • 10 cycle rms/12 cycle rms
  • Dip and swell monitors
  • Line frequency--one per phase
  • Zero crossing, zero-crossing timeout
  • Phase angle measurements
  • Supports CTs and Rogowski coil (di/dt) sensors
  • Multiple range phase/gain compensation for CTs
  • Digital integrator for Rogowski coils
  • Flexible waveform buffer
  • Able to resample waveform to ensure 128 points per line cycle for ease of external harmonic analysis
Applications Of ADE9000
  • Energy and power monitoring
  • Power quality monitoring
  • Protective devices
  • Machine health
  • Smart power distribution units
  • Polyphase energy meters
