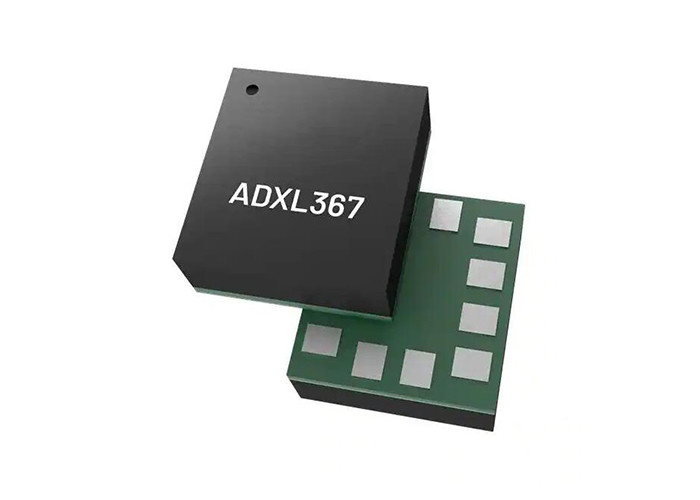

Integrated Circuit Chip ADXL367BCCZ 3-Axis Digital Output MEMS Accelerometer 12-LGA

Integrated Circuit Chip ADXL367BCCZ 3-Axis Digital Output MEMS Accelerometer 12-LGA ​

Product Description Of ADXL367BCCZ

ADXL367BCCZ is an ultralow power, 3-axis microelectromechanical systems (MEMS) accelerometer that consumes only 0.89 µA at a 100 Hz output data rate and 180 nA when in motion-triggered wake-up mode.

Specification Of ADXL367BCCZ

Features Of ADXL367BCCZ

• Single-cell battery operation: 1.1 V to 3.6 V
• Internal power supply regulation for high PSRR
• 0.89 µA at 100 Hz ODR, 2.0 V supply
• 180 nA motion activated wake-up mode
• 40 nA standby current
• High resolution: 0.25 mg/LSB
• Single-tap and double-tap detection with only 35 nA of added current
