IGT60R070D1 GaN IC 600V Power Transistor with 55 mΩ RDS(on) and Ultrafast Switching for High Efficiency

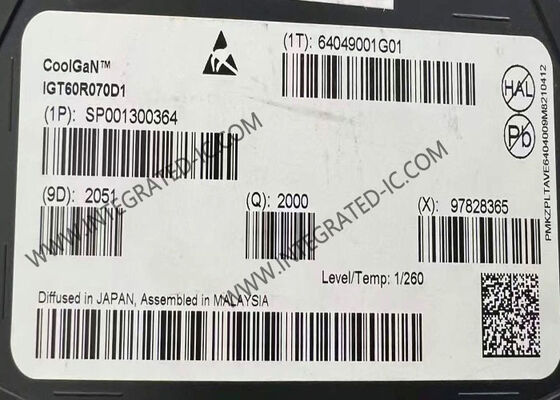

Large Image : IGT60R070D1 GaN IC 600V Power Transistor with 55 mΩ RDS(on) and Ultrafast Switching for High Efficiency

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	IGT60R070D1

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	PG-HSOF-8-3
Delivery Time:	3-5 work days
Payment Terms:	TT
Supply Ability:	10000 Pieces per Day

Contact Now

IGT60R070D1 GaN IC 600V Power Transistor with 55 mΩ RDS(on) and Ultrafast Switching for High Efficiency

Description

Part Number:	IGT60R070D1	ID (@ TA=25°C) Max:	31 A
IDpuls (@25°C) Max:	60 A	Ptot Max:	125 W
QG:	5.8 NC	RDS (on) (typ):	55 MΩ

IGT60R070D1 GaN IC IGT60R070D1ATMA4 CoolGaN™ 600V E-mode Power Transistor

IGT60R070D1 enables a more compact topology and higher efficiency at higher frequency operation. It is certified through an extensive GaN-specific qualification process, exceeding industry standards. Housed in the bottom-side cooled HSOF-8 (TO-leadless) package, it is designed for optimal power dissipation required in modern data centers, servers, telecom, renewables and numerous other applications.

Features

E-mode HEMT - normally OFF
Ultrafast switching
No reverse-recovery charge
Capable of reverse conduction
Low gate charge, low output charge
Superior commutation ruggedness
JEDEC qualified (JESD47, JESD22)
Low dynamic RDS(on)
Bottom-side cooled

Benefits

Improves system efficiency
Improves power density
Enables higher operating frequency
System cost reduction savings
Reduces EMI

Applications

Medium voltage IBC (48 V)
Battery energy storage (BESS)
DIN rail power supply solutions
Uninterruptible power supplies (UPS)
