BQ76952PFBR Integrated Circuit Chip High-Accuracy Battery Monitor and Protector for 3-series to 16-series Li-ion Battery Packs

BQ76952PFBR Integrated Circuit Chip High-Accuracy Battery Monitor and Protector for 3-series to 16-series Li-ion Battery Packs
BQ76952PFBR Integrated Circuit Chip High-Accuracy Battery Monitor and Protector for 3-series to 16-series Li-ion Battery Packs
BQ76952PFBR Integrated Circuit Chip High-Accuracy Battery Monitor and Protector for 3-series to 16-series Li-ion Battery Packs BQ76952PFBR Integrated Circuit Chip High-Accuracy Battery Monitor and Protector for 3-series to 16-series Li-ion Battery Packs BQ76952PFBR Integrated Circuit Chip High-Accuracy Battery Monitor and Protector for 3-series to 16-series Li-ion Battery Packs BQ76952PFBR Integrated Circuit Chip High-Accuracy Battery Monitor and Protector for 3-series to 16-series Li-ion Battery Packs

Large Image :  BQ76952PFBR Integrated Circuit Chip High-Accuracy Battery Monitor and Protector for 3-series to 16-series Li-ion Battery Packs

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: BQ76952PFBR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 48-TQFP
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

BQ76952PFBR Integrated Circuit Chip High-Accuracy Battery Monitor and Protector for 3-series to 16-series Li-ion Battery Packs

Description
Part Number: BQ76952PFBR Operating Supply Voltage:: 4.7 V To 80 V
Maximum Operating Temperature:: + 85 C Minimum Operating Temperature:: - 40 C
Highlight:

Integrated Circuit Chip BQ76952PFBR

,

BQ76952PFBR

BQ76952PFBR Integrated Circuit Chip High-Accuracy Battery Monitor And Protector For Li-Ion
The BQ76952PFBR is a highly integrated, high-accuracy battery monitor and protector designed for 3-series to 16-series Li-ion, Li-polymer, and LiFePO4 battery packs. This device features a precision monitoring system, configurable protection subsystem, and supports both autonomous and host-controlled cell balancing.
Key Specifications
Function Multi-Function Controller
Battery Chemistry LiFePO4/Li-ion
Number of Cells 3 ~ 16
Fault Protection Over Temperature
Interface I2C, SPI
Operating Temperature -40°C ~ 85°C (TA)
Advanced Features
  • Battery monitoring for 3-series to 16-series cells
  • Integrated charge pump for high-side NFET protection with optional autonomous recovery
  • Comprehensive protection suite including voltage, temperature, current, and internal diagnostics
  • Two independent ADCs with simultaneous current and voltage sampling
  • High-accuracy coulomb counter with input offset error < 1 µV (typical)
  • Precision cell voltage measurement < 10 mV (typical)
  • Wide-range current applications (±200-mV measurement range)
  • Integrated secondary chemical fuse drive protection
  • Autonomous or host-controlled cell balancing
  • Multiple power modes for optimized battery performance
  • High-voltage tolerance of 85 V on cell connect pins
  • Tolerant of random cell attach sequence during production
  • Support for temperature sensing using internal sensor and up to nine external thermistors
  • Integrated one-time-programmable (OTP) memory
  • Communication options: 400-kHz I2C, SPI, and HDQ one-wire interface
  • Dual-programmable LDOs for external system usage

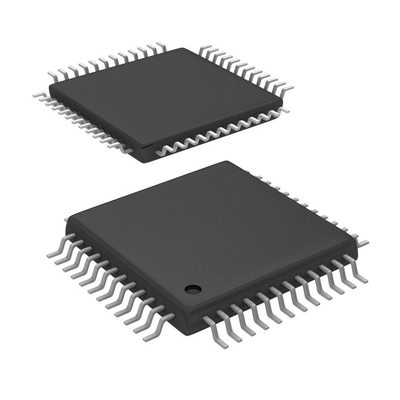

  • 48-pin TQFP package (PFB)
Power Mode Specifications
NORMAL mode: 286 µA
SLEEP mode options: 24 µA to 41 µA
DEEPSLEEP mode options: 9 µA to 10 µA
SHUTDOWN mode: 1 µA
Target Applications
  • Battery backup unit (BBU)
  • E-bike, e-scooter, and LEV
  • Cordless power tools and garden tools
  • Non-military drones
  • Other industrial battery pack (≥10S)
