TPS92611QDGNRQ1 Automotive IC Single-Channel LED Driver with 4.5V to 40V Input and 300mA Output

TPS92611QDGNRQ1 Automotive IC Single-Channel LED Driver with 4.5V to 40V Input and 300mA Output
TPS92611QDGNRQ1 Automotive IC Single-Channel LED Driver with 4.5V to 40V Input and 300mA Output

Large Image :  TPS92611QDGNRQ1 Automotive IC Single-Channel LED Driver with 4.5V to 40V Input and 300mA Output

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: TPS92611QDGNRQ1
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: HVSSOP-8
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

TPS92611QDGNRQ1 Automotive IC Single-Channel LED Driver with 4.5V to 40V Input and 300mA Output

Description
Features: PWM Dimming, Constant Current Part Number: TPS92611QDGNRQ1
Input Voltage: 4.5 V To 40 V Output Current: 300 MA
Output Voltage: 40 V Output Type: Constant Current
Highlight:

Single-Channel LED Driver

,

4.5V to 40V Input Automotive IC

,

300mA Output Integrated Circuit Chip

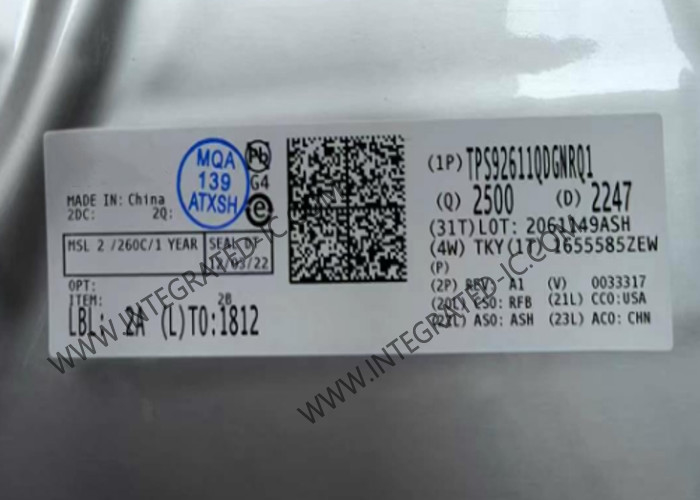

TPS92611QDGNRQ1 Integrated Circuit Chip Automotive Single-Channel LED Driver HVSSOP-8

TPS92611QDGNRQ1 Integrated Circuit Chip Automotive Single-Channel LED Driver HVSSOP-8

TPS92611 is a simple single-channel high-side LED driver operating from an automotive car battery. It is a simple and elegant solution, with LED diagnostics, to deliver constant current for a single LED string.

Specifications Of TPS92611
Type Linear
Internal Switch(s) No
Number of Outputs 1
Voltage - Supply (Min) 4.5V
Voltage - Supply (Max) 40V
Voltage - Output 0V ~ 40V
Current - Output / Channel 300mA
Dimming PWM
Applications Lighting
Operating Temperature -40°C ~ 125°C (TA)
Grade Automotive
Qualification AEC-Q100
Mounting Type Surface Mount
Package / Case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package 8-HVSSOP
Features Of TPS92611
  • Single-Channel Constant-Current LED Driver With PWM Dimming
  • Wide Input-Voltage Range: 4.5 V-40 V
  • Constant Output Current, Adjustable by Sense Resistor
  • Precision Current Regulation, Tolerance ±4.6%
  • Maximum Current: 300 mA
  • Heat Sharing With External Resistor
  • Low Dropout Voltage (Current-Sense Voltage Drop Included)
    • Maximum Dropout: 150 mV at 10 mA
    • Maximum Dropout: 400 mV at 70 mA
    • Maximum Dropout: 700 mV at 150 mA
    • Maximum Dropout: 1.3 V at 300 mA
  • Diagnostics and Protection
    • LED Open-Circuit and Short-Circuit Detection With Auto-Recovery
    • Diagnostic-Enable With Adjustable Threshold for Low-Dropout Operation
    • Fault Bus up to 15 Devices, Configurable As Either One-Fails-All-Fail or Only-Failed Channel Off
    • Low Quiescent Current and Fault-Mode Current (<250 µA per Device)
  • Operating Junction Temperature Range: -40°C to 150°C
Applications Of TPS92611
  • Automotive Convenience Lighting: Dome Light, Door Handles, Reading Lamp, and Miscellaneous Lamps
  • Automotive Rear Lamp, Center High-Mounted Stop Lamp, Side Markers, Blind-Spot Detection Indicator, Charging Inlet Indicator
  • General-Purpose LED Driver Application
Product Tags
TPS92611QDGNRQ1, TPS92611QDGNRQ, TPS92611QDGNR, TPS92611QDGN, TPS92611QDG, TPS92611QD, TPS92611Q, TPS92611
