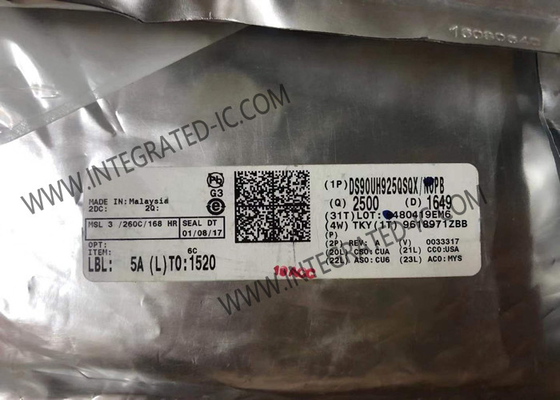

DS90UH925QSQX Integrated Circuit Chip 24-Bit Color FPD-Link III Serializer With HDCP

DS90UH925QSQX Integrated Circuit Chip 24-Bit Color FPD-Link III Serializer With HDCP

Product Description Of DS90UH925QSQX
DS90UH925QSQX deserializer, provides a solution for secure distribution of content-protected digital video within automotive entertainment systems. This chipset translates a parallel RGB Video Interface into a single pair high-speed serialized interface. The digital video data is protected using the industry standard HDCP copy protection scheme. The serial bus scheme, FPD-Link III, supports video and audio data transmission and full duplex control including I2C communication over a single differential link. Consolidation of video data and control over a single differential pair reduces the interconnect size and weight, while also eliminating skew issues and simplifying system design.

Specification Of DS90UH925QSQX

Features Of DS90UH925QSQX
Integrated HDCP Cipher Engine with On-chip Key
Storage
Bidirectional Control Interface Channel Interface
with I2C Compatible Serial Control Bus
Supports High Definition (720p) Digital Video
Format
RGB888 + VS, HS, DE and I2S Audio Supported
5 to 85 MHz PCLK Supported
Single 3.3V Operation with 1.8 V or 3.3 V Compatible
LVCMOS I/O Interface
AC-coupled STP Interconnect up to 10 meters
Parallel LVCMOS Video Inputs
DC-balanced & Scrambled Data with Embedded
Clock
HDCP Content Protected
Supports HDCP Repeater Application
Internal Pattern Generation
Low Power Modes Minimize Power Dissipation
Automotive Grade Product: AEC-Q100 Grade 2 Qualified
> 8k V HBM and ISO 10605 ESD rating
Backward Compatible Modes

Applications Of DS90UH925QSQX
Automotive Display for Navigation
Rear Seat Entertainment Systems
