BTS723GW Integrated Circuit IC Chip 7V to 58V Smart High-Side Power Switch with 2 Output and 2.9 A Current

BTS723GW Integrated Circuit IC Chip 7V to 58V Smart High-Side Power Switch with 2 Output and 2.9 A Current
BTS723GW Integrated Circuit IC Chip 7V to 58V Smart High-Side Power Switch with 2 Output and 2.9 A Current
BTS723GW Integrated Circuit IC Chip 7V to 58V Smart High-Side Power Switch with 2 Output and 2.9 A Current BTS723GW Integrated Circuit IC Chip 7V to 58V Smart High-Side Power Switch with 2 Output and 2.9 A Current BTS723GW Integrated Circuit IC Chip 7V to 58V Smart High-Side Power Switch with 2 Output and 2.9 A Current

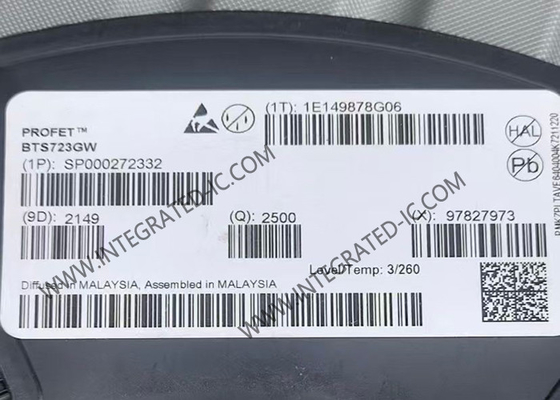

Large Image :  BTS723GW Integrated Circuit IC Chip 7V to 58V Smart High-Side Power Switch with 2 Output and 2.9 A Current

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: BTS723GW
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SOIC-14
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

BTS723GW Integrated Circuit IC Chip 7V to 58V Smart High-Side Power Switch with 2 Output and 2.9 A Current

Description
Part Number: BTS723GW Number Of Outputs:: 2 Output
Output Current:: 2.9 A Current Limit:: 8 A
On Resistance - Max:: 150 MOhms Operating Supply Voltage:: 7 V To 58 V
Highlight:

7V to 58V IC Chip

,

2 Output Power Switch

,

2.9 A Output Current Integrated Circuit Chip

BTS723GW Integrated Circuit Chip 7V To 58V Smart High-Side Power Switch SOIC-14
Product Description
BTS723GW is a high side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions.
Specifications
Type: High Side
Number of Outputs: 2 Output
Output Current: 2.9 A
Current Limit: 8 A
On Resistance - Max: 150 mOhms
On Time - Max: 55 us
Off Time - Max: 95 us
Operating Supply Voltage: 7 V to 58 V
Minimum Operating Temperature: -40 °C
Maximum Operating Temperature: +105 °C
Moisture Sensitive: Yes
Pd - Power Dissipation: 3 W
Supply Voltage - Max: 58 V
Supply Voltage - Min: 7 V
Unit Weight: 137 mg
Features
  • Very low standby current
  • CMOS Compatible input
  • Improved electromagnetic compatibility (EMC)
  • Fast demagnetization of inductive loads
  • Stable behavior at undervoltage
  • Wide operating voltage range
  • Logic ground independent from load ground
  • Optimized inverse current capability
  • Overload protection
  • Current limitation
  • Short-circuit protection
  • Thermal shutdown
  • Overvoltage protection (including load dump)
  • Reverse battery protection with external resistor
  • Electrostatic discharge (ESD) protection
  • Open drain diagnostic output
  • Open load detection in OFF-state
  • Feedback of thermal shutdown in ON-state
  • Diagnostic feedback of both channels works properly in case of inverse current
Benefits
  • High voltage capability
  • Benchmark energy robustness
  • High Load Dump Protection
Applications
  • Truck & Agricultural Vehicle Solutions (24V)
  • Automotive body control module (BCM)
  • Central inverter solutions
  • Commercial, construction and agricultural vehicles (CAV)
  • Programmable logic controller (PLC)
