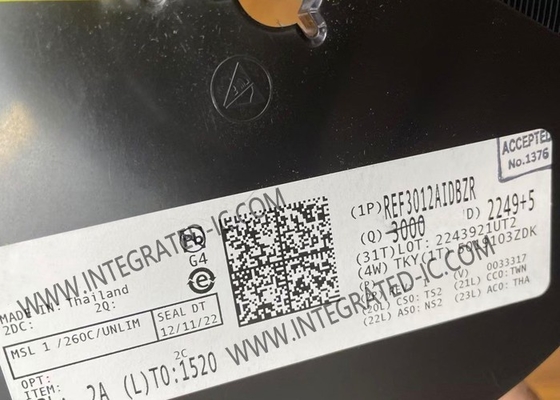

REF3012AIDBZR Integrated Circuit Chip Precision Low-Dropout Voltage Reference SOT-23-3 Package
REF3012AIDBZR Integrated Circuit Chip Precision Low-Dropout Voltage Reference SOT-23-3 Package
Description
Part Number:
REF3012AIDBZR
Reference Type::
Series References
Output Voltage::
1.25 V
Initial Accuracy::
0.2 %
Temperature Coefficient::
75 PPM / C
Series VREF - Input Voltage - Max::
5.5 V
Highlight:
Low-Dropout Voltage Reference Chip
,
REF3012AIDBZR Integrated Circuit Chip
,
REF3012AIDBZR
REF3012AIDBZR Integrated Circuit Chip Precision Low-Dropout Voltage Reference SOT-23-3 Package
Product Description Of REF3012AIDBZR
REF3012AIDBZR is a precision, low-power, low-dropout voltage, reference family available in a tiny 3-pin SOT-23-3 package. The REF3012AIDBZR offers excellent temperature drift and initial accuracy while operating at a quiescent current of 42 µA (typical).
The low power consumption and the relatively high precision make the REF3012AIDBZR very attractive for loop-powered industrial applications such as pressure and temperature transmitter applications. The REF3012AIDBZR is easy to use in intrinsically safe and explosion-proof applications because it does not require a load capacitor to be stable. The REF3012AIDBZR is specified over the extended industrial temperature range of –40°C to +125°C.
The REF3012AIDBZR operates with supplies within 1 mV of output voltage under zero-load conditions. Engineers can use the low dropout, small size, and low power consumption of the REF3012AIDBZR in portable and battery-powered applications.
Specification Of REF3012AIDBZR
1.25 V
0.2 %
75 PPM / C
5.5 V
25 mA
- 40 C
+ 125 C
Accuracy:
100 uV/mA
Height:
1 mm
Length:
2.92 mm
Operating Supply Current:
42 uA
Supply Current - Max:
50 uA
Width:
1.3 mm
Unit Weight:
11.200 mg
Feature Of REF3012AIDBZR
microSize Package: SOT-23-3
Low Dropout: 1 mV
High Output Current: 25 mA
High Accuracy: 0.2%
Low IQ: 42 µA (Typical)
Excellent Specified Drift Performance:
50 ppm/°C (Maximum) From 0°C to 70°C
75 ppm/°C (Maximum) From –40°C to +125°C
Applications Of REF3012AIDBZR
Temperature and Pressure Transmitters
Portable, Battery-Powered Equipment
Data Acquisition Systems
Medical Equipment
Handheld Test Equipment
Other Supply Product Types
Part Number
Package
ISO7142CCQDBQQ1
16-SSOP
ISO7331FCQDWQ1
16-SOIC
ISO7340FCQDWQ1
16-SOIC
ISO7721FQDWRQ1
16-SOIC
ISO7820DWWR
16-SOIC
ISO7841DWWR
16-SOIC
ISO7321FCQDQ1
8-SOIC
ISO6721RFBQDRQ1
8-SOIC
OPA814DR
8-SOIC
INA310B4QDGKRQ1
8-TSSOP
INA310A2QDGKRQ1
8-TSSOP
INA310A1QDGKRQ1
8-TSSOP
INA310A5QDGKRQ1
8-TSSOP
INA310B2QDGKRQ1
8-TSSOP
INA310A3QDGKRQ1
8-TSSOP
INA296A2QDDFRQ1
SOT-23-8
INA241A2IDDFR
SOT-23-8
INA186A1QDDFRQ1
SOT-23-8
INA190A2QDDFRQ1
SOT-23-8
INA296A2IDDFR
SOT-23-8
INA241B3IDDFR
SOT-23-8
INA241A5IDDFR
SOT-23-8
INA190A4IDCKR
6-TSSOP
INA293A4QDBVRQ1
SOT-23-5
INA281B2QDBVRQ1
SOT-23-5
INA281A5QDBVRQ1
SOT-23-5
INA293B2QDBVRQ1
SOT-23-5
INA240A1QDRQ1
8-SOIC
INA250A4QPWRQ1
16-TSSOP
INA181A2QDBVRQ1
SOT-23-6
