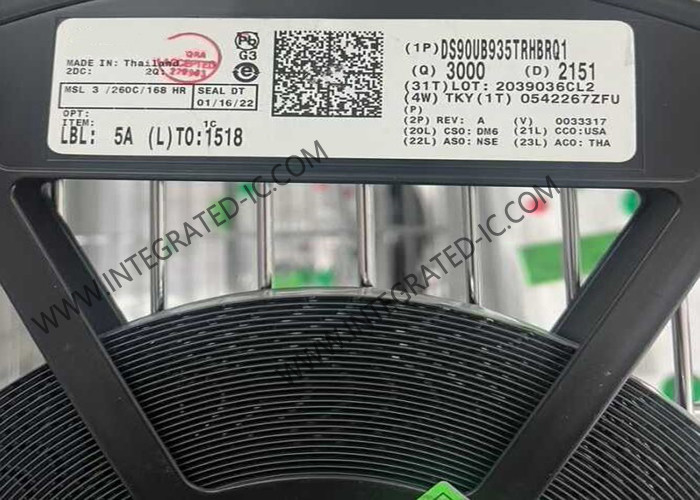

DS90UB935TRHBRQ1 Integrated Circuit Chip FPD-Link III 3Gbps Serializer VQFN-32

DS90UB935TRHBRQ1 Integrated Circuit Chip FPD-Link III 3Gbps Serializer VQFN-32

Product Description Of DS90UB935TRHBRQ1

DS90UB935TRHBRQ1 is FPD-Link III 3Gbps serializer with CSI-2 interface for 1MP and 60 fps.
DS90UB935TRHBRQ1 support high-speed raw data sensors including cameras, satellite RADAR, LIDAR, and Time-of-Flight (ToF) sensors. The chip delivers a high-speed forward channel and an ultra-low latency, bidirectional control channel and supports power over a single coax (PoC) or STP cable.

Specification Of DS90UB935TRHBRQ1

Features Of DS90UB935TRHBRQ1

• Power-over-Coax (PoC) compatible transceiver
• D-PHY v1.2 and CSI-2 v1.3 compliant system interface
– Up to 2.528Gbps CSI-2 Bandwidth
– Supports up to four virtual channels
• Precision multi-camera clocking and synchronization
• Flexible programmable output clock generator
• Advanced data protection and diagnostics including CRC data protection, sensor data integrity check, I2C write protection, voltage and temperature measurement, programmable alarm, and line fault detection
• Supports Single-ended coaxial or shielded-twistedpair (STP) cable
• Ultra-low latency bidirectional I2C and GPIO control channel enables ISP control from ECU
• Single 1.8V power supply
• Low (0.28W typical) power consumption
• Small 5mm × 5mm VQFN package and PoC solution size for compact camera module designs

Applications Of DS90UB935TRHBRQ1
• Advanced driver assistance systems (ADAS)
– Surround View Systems (SVS)
– Camera Monitor Systems (CMS)
– Forward Vision Cameras (FC)
– Driver Monitoring Systems (DMS)
– Rear-View Cameras (RVC)
– Automotive satellite RADAR and LIDAR modules
– Time-of-Flight (ToF) sensors
• Security and Surveillance Cameras
• Industrial and Medical Imaging
