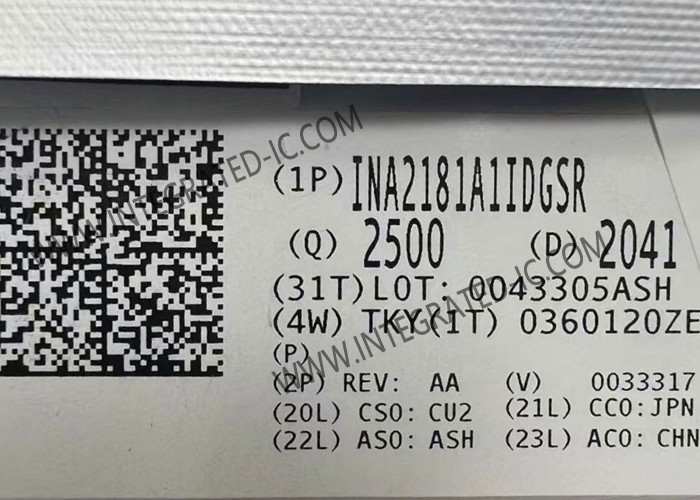

INA2181A1IDGSR Integrated Circuit Chip 350kHz Bidirectional Current Sense Amplifiers

INA2181A1IDGSR Integrated Circuit Chip 350kHz Bidirectional Current Sense Amplifiers

Product Description Of INA2181A1IDGSR

INA2181A1IDGSR Current sense amplifiers is designed for costoptimized applications. It is part of a family of bidirectional, current-sense amplifiers (also called current-shunt monitors) that sense voltage drops across current-sense resistors at commonmode voltages from –0.2 V to +26 V, independent of the supply voltage.

Specification Of INA2181A1IDGSR

Features Of INA2181A1IDGSR

Common-mode range (VCM): –0.2 V to +26 V
High bandwidth: 350 kHz
Offset voltage:
– ±150 µV (maximum) at VCM = 0 V
– ±500 µV (maximum) at VCM = 12 V
Output slew rate: 2 V/µs
Bidirectional current-sensing capability
Accuracy:
– ±1% gain error (maximum)
– 1-µV/°C offset drift (maximum)
Gain options: 20 V/V
Quiescent current: 260 µA maximum

Applications Of INA2181A1IDGSR
Motor control
Battery monitors and balancers
Power management
Lighting control
Solar inverters
