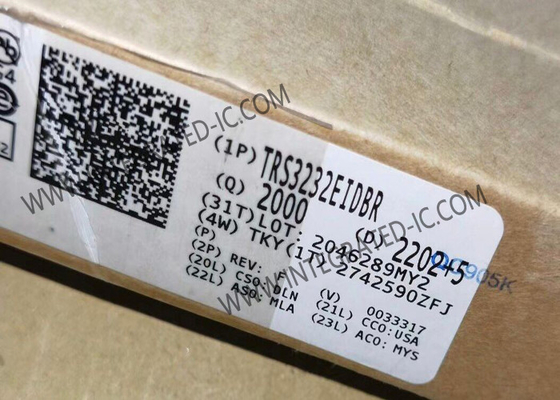

TRS3232EIDBR Integrated Circuit Chip Multichannel RS-232 Line Driver And Receiver With ±15kV IECESD Protection

TRS3232EIDBR Integrated Circuit Chip Multichannel RS-232 Line Driver And Receiver With ±15kV IECESD Protection

Product Description Of TRS3232EIDBR
TRS3232EIDBR device consists of two line drivers, two-line receivers, and a dual charge-pump circuit with ±15kV IEC ESD protection pin to pin (serial-port connection pins, including GND).

The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3V to 5.5V supply. The devices operate at data signaling rates up to 250kbps and a maximum of 30V/μs driver output slew rate.

Specifications Of TRS3232EIDBR

Features Of TRS3232EIDBR
ESD protection for RS -232 bus pins
Meets or exceeds the requirements of TIA/EIA-232-F and ITU V.28 standards
Operates with 3V to 5.5V Vcc supply
Interoperable with RS- 232 down to 2.7V Vcc
Operates up to 250kbps
Two drivers and two receivers
Low supply current: 300μA (typical)
External capacitors: 4 x 0.1μF
Accepts 5V logic input with 3.3V supply
Available in near chip-scale package (QFN-16,3mm X 3mm), 85% smaller than SOlC-16
Pin compatible to alternative high-speed devices (1Mbps)

Applications Of TRS3232EIDBR
Industrial PCs
Wired networking
Data center and enterprise computing
Battery-powered systems
Notebooks
Palmtop PCs
Hand-held equipment
