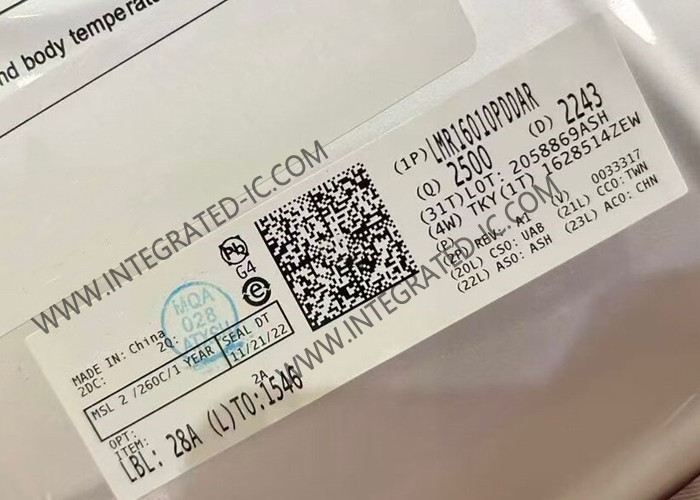

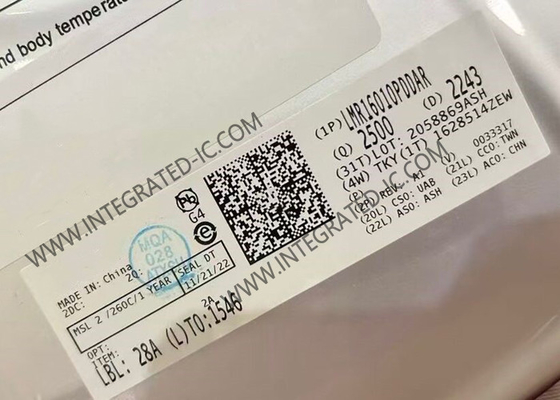

LMR16010PDDAR Integrated Circuit Chip 60V 1A Step-Down Converter With 40 µA IQ
LMR16010PDDAR Integrated Circuit Chip 60V 1A Step-Down Converter With 40 µA IQ
Description
Part Number:
LMR16010PDDAR
Output Voltage::
800 MV To 50 V
Output Current::
1 A
Number Of Outputs::
1 Output
Input Voltage - Min::
4.3 V
Input Voltage - Max::
60 V
LMR16010PDDAR Integrated Circuit Chip 60V 1A Step-Down Converter With 40 µA IQ
Product Description Of LMR16010PDDAR
LMR16010PDDAR is a 60 V, 1 A SIMPLE SWITCHER step down regulator with an integrated high-side MOSFET. With a wide input range from 4.3 V to 60 V, it’s suitable for various applications from industrial to automotive for power conditioning from unregulated sources. The regulator’s quiescent current is 40 µA in Sleep-mode, which is suitable for battery powered systems. An ultra-low 1 µA current in shutdown mode can further prolong battery life. A wide adjustable switching frequency range allows either efficiency or external component size to be optimized. Internal loop compensation means that the user is free from the tedious task of loop compensation design. This also minimizes the external components of the device. A precision enable input allows simplification of regulator control and system power sequencing. The device also has built-in protection features such as cycle-by-cycle current limit, thermal sensing and shutdown due to excessive power dissipation, and output overvoltage protection.
Specifications Of LMR16010PDDAR
Buck
800 mV to 50 V
1 A
1 Output
4.3 V
60 V
40 uA
200 kHz to 2.5 MHz
- 40 C
+ 125 C
Input Voltage:
4.3 V to 60 V
Moisture Sensitive:
Yes
Operating Supply Current:
40 uA
Unit Weight:
98 mg
Features Of LMR16010PDDAR
4.3 V to 60 V Input Range
1 A Continuous Output Current
Ultra-low 40 µA Operating Quiescent Current
155 mΩ High-Side MOSFET
Current Mode Control
Adjustable Switching Frequency from 200 kHz
to 2.5 MHz
Frequency Synchronization to External Clock
Internal Compensation for Ease of Use
High Duty Cycle Operation Supported
Precision Enable Input
Power-Good Flag
1 µA Shutdown Current
Thermal, Overvoltage and Short Protection
8-Pin HSOIC with PowerPAD Package
Applications Of LMR16010PDDAR
Automotive Battery Regulation
Industrial Power Supplies
Telecom and Datacom Systems
General Purpose Wide Vin Regulation
