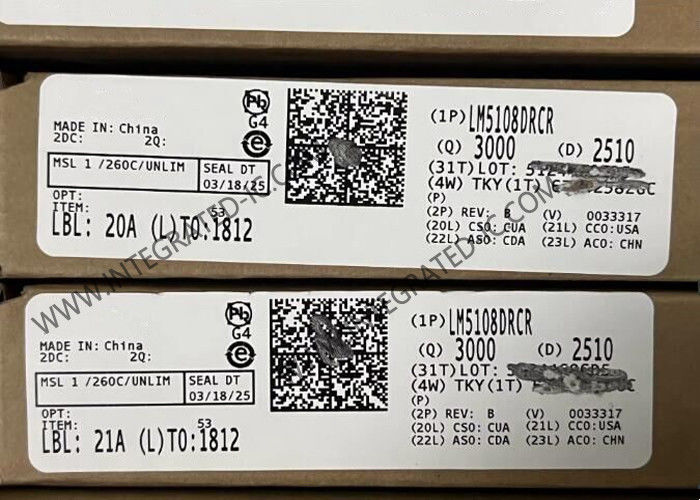

LM5108DRCR Integrated Circuit Chip 100V Gate Driver IC VSON10 Half Bridge Driver

LM5108DRCR Integrated Circuit Chip 100V Gate Driver IC VSON10 Half Bridge Driver​

Product Description Of LM5108DRCR

LM5108DRCR is a high frequency half-bridge gate driver with maximum switch node (HS) voltage rating of 100 V. It allows for two N-channel MOSFETs to be controlled in half-bridge configuration based topologies such as synchronous buck, full bridge, active clamp forward, LLC, and synchronous boost.

Specification Of LM5108DRCR

Features Of LM5108DRCR

Drives two N-channel MOSFETs in high-side low-side configuration
Available in 3-mm x 3-mm package
Interlock or cross-conduction protection
Enable/disable functionality
Absolute maximum negative voltage handling on HS (–7 V)
5-V typical under voltage lockout
20-ns typical propagation delay
11-ns rise, 8-ns typical fall time with 1000-pF load
1-ns typical delay matching
2.6-A sink, 1.6-A source output currents
Absolute maximum boot voltage 110 V
Low current (7-µA) consumption when disabled
Integrated bootstrap diode

Applications Of LM5108DRCR

Motor drives and power tools
Switch-mode power supplies
Auxiliary inverters
