BSZ42DN25NS3G Integrated Circuit Chip 250V OptiMOS™ 3 N-Channel Power MOSFET Transistors

BSZ42DN25NS3G Integrated Circuit Chip 250V OptiMOS™ 3 N-Channel Power MOSFET Transistors
BSZ42DN25NS3G Integrated Circuit Chip 250V OptiMOS™ 3 N-Channel Power MOSFET Transistors
BSZ42DN25NS3G Integrated Circuit Chip 250V OptiMOS™ 3 N-Channel Power MOSFET Transistors BSZ42DN25NS3G Integrated Circuit Chip 250V OptiMOS™ 3 N-Channel Power MOSFET Transistors

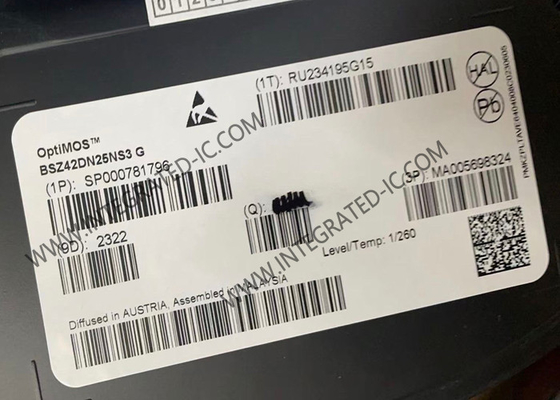

Large Image :  BSZ42DN25NS3G Integrated Circuit Chip 250V OptiMOS™ 3 N-Channel Power MOSFET Transistors

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: BSZ42DN25NS3G
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TSDSON-8
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

BSZ42DN25NS3G Integrated Circuit Chip 250V OptiMOS™ 3 N-Channel Power MOSFET Transistors

Description
Part Number: BSZ42DN25NS3G Transistor Polarity:: N-Channel
Number Of Channels:: 1 Channel Vds - Drain-Source Breakdown Voltage:: 250 V
Id - Continuous Drain Current:: 5 A Rds On - Drain-Source Resistance:: 371 MOhms

BSZ42DN25NS3G Integrated Circuit Chip 250V OptiMOS™ 3 N-Channel Power MOSFET Transistors







Product Description Of BSZ42DN25NS3G
BSZ42DN25NS3G 250V OptiMOS™ 3 N-Channel Power MOSFET Transistors is performance leading benchmark technologies, perfectly suited for synchronous rectification in 48V systems, DC-DC converters, uninterruptable power supplies (UPS) and inverters for DC motor drives.



Specification Of BSZ42DN25NS3G

N-Channel

1 Channel

250 V

5 A

371 mOhms

- 20 V, + 20 V

2 V

5.5 nC

- 55 C

+ 150 C

33.8 W

Enhancement

Configuration:

Single

Fall Time:

5 ns

Forward Transconductance - Min:

3 S

Height:

1.1 mm

Length:

3.3 mm

Product Type:

MOSFETs

Rise Time:

2 ns

Typical Turn-Off Delay Time:

8 ns

Typical Turn-On Delay Time:

3 ns

Width:

3.3 mm

Unit Weight:

38.760 mg



Features Of BSZ42DN25NS3G
Optimized for dc-dc conversion
N-channel, normal level
Excellent gate charge x R DS(on) product (FOM)
Low on-resistance R DS(on)
150 °C operating temperature
Pb-free lead plating; RoHS compliant
Qualified according to JEDEC1) for target application
Halogen-free according to IEC61249-2-21



Benefits Of BSZ42DN25NS3G
Highest efficiency
Highest Power density
Lowest board space consumption
Minimal device paralleling required
System cost improvement
Enviromentally friendly
Easy-to-design-in products



Applications Of BSZ42DN25NS3G
Synchronous rectification for AC-DC SMPS
Motor control for 48V–110V systems
Isolated DC-DC converters
Lighting for 110V AC networks
HID lamps
Class D audio amplifiers
Uninterruptable power supplies (UPS)
48 V to 12 V DC-DC converter
