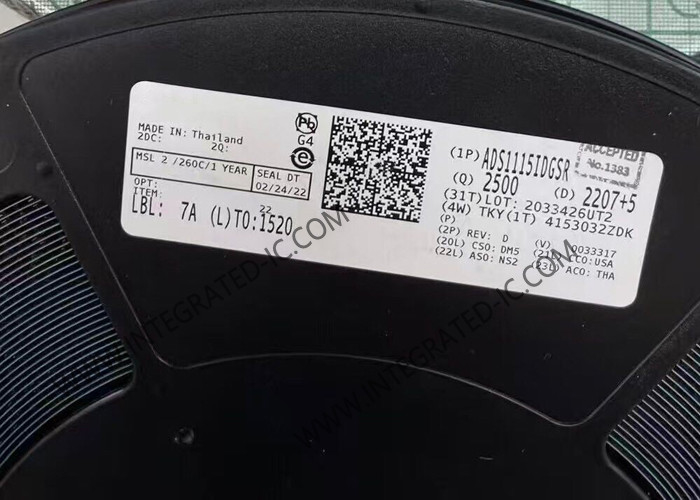

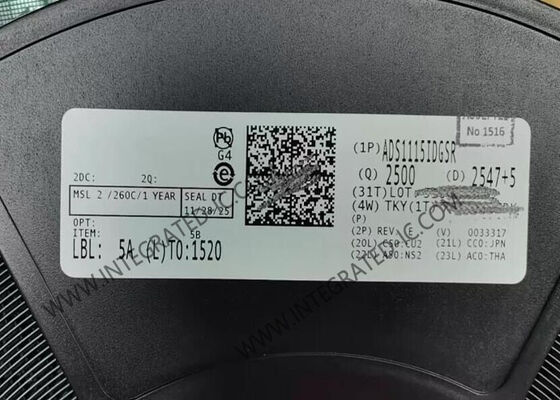

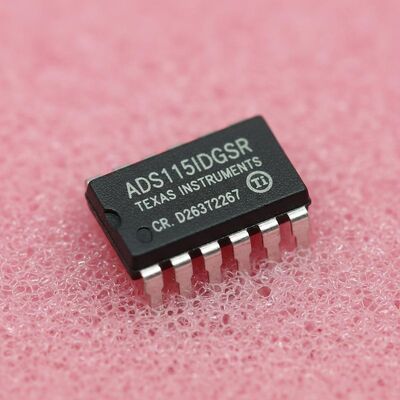

ADS1115IDGSR 16Bit Delta Sigma ADC with 860SPS Sampling Rate and I2C Interface Analog to Digital Converter

Large Image : ADS1115IDGSR 16Bit Delta Sigma ADC with 860SPS Sampling Rate and I2C Interface Analog to Digital Converter

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	ADS1115IDGSR

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	VSSOP-10
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

ADS1115IDGSR 16Bit Delta Sigma ADC with 860SPS Sampling Rate and I2C Interface Analog to Digital Converter

Description

Part Number:	ADS1115IDGSR	Number Of Bits:	16
Sampling Rate (Per Second):	860	Number Of Inputs:	2, 4
Data Interface:	I2C	Operating Temperature:	-40°C ~ 125°C
Highlight:	16Bit Analog to Digital Converter , 860SPS ADC , I2C Interface Integrated Circuit Chip

ADS1115IDGSR Integrated Circuit Chip

Precision 16-bit Analog to Digital Converter with Delta-Sigma architecture, designed for sensor measurement applications in power- and space-constrained environments.

Product Overview

The ADS1115IDGSR is a high-precision, low-power, 16-bit analog-to-digital converter featuring I2C compatibility in a compact VSSOP-10 package. This ADC integrates a low-drift voltage reference, oscillator, programmable gain amplifier (PGA), and digital comparator for comprehensive sensor measurement capabilities.

Technical Specifications

Part Number	ADS1115IDGSR
Product Category	Analog to Digital Converters - ADC
Mounting Style	SMD/SMT
Package / Case	VSSOP-10
Resolution	16 bit
Number of Channels	2 Channel/4 Channel
Interface Type	I2C
Sampling Rate	860 S/s
Input Type	Differential/Single-Ended
Architecture	Sigma-Delta
Analog Supply Voltage	2 V to 5.5 V
Digital Supply Voltage	2 V to 5.5 V
Operating Temperature	-40℃ to +125℃
Features	Comparator, Oscillator, PGA
INL - Integral Nonlinearity	1 LSB
Number of Converters	1 Converter
Operating Supply Voltage	2 V to 5.5 V
Power Dissipation	900 uW
Power Consumption	300 uW

Key Features

Wide supply range: 2.0V to 5.5V
Low current consumption: 150μA (continuous-conversion mode)
Programmable data rate: 8SPS to 860SPS
Single-cycle settling
Internal low-drift voltage reference
Internal oscillator
I2C interface: four pin-selectable addresses
Operating temperature range: -40°C to +125°C
Four single-ended or two differential inputs with comparator and PGA

Applications

Portable instrumentation
Battery voltage and current monitoring
Temperature measurement systems
Consumer electronics
Factory automation and process control
