Product Description Of SE5004L-R

SE5004L-R is a 5GHz power amplifier offering high linear power for wireless LAN applications. The SE5004L-R incorporates a power detector for closed loop monitoring and control of the output power.

SE5004L-R integrates the input match, the inter-stage match, the output match, the power detector with 15dB of dynamic range and a 3.8GHz notch filter. Only 6 external decoupling capacitors are required to complete the design.

Specification Of SE5004L-R

Features Of SE5004L-R

High output power amplifier: - 26dBm at 5V
External Analog Reference Voltage (VREF) for maximum flexibility
Buffered, temperature compensated power detector
3% EVM, @26dBm, 64 QAM, 54 Mbps
32 dB Gain
Lead Free, RoHS compliant, halogen free MSL3 package

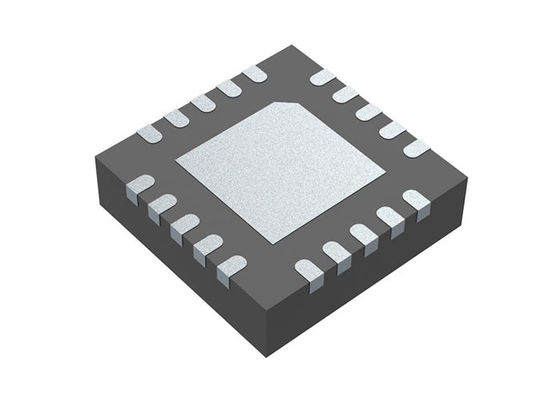

20 pin 4 mm x 4 mm x 0.9 mm QFN

Applications Of SE5004L-R
DSSS 5 GHz WLAN (IEEE802.11a)
DSSS 5 GHz WLAN (IEEE802.11n)
Access Points, PCMCIA, PC cards
