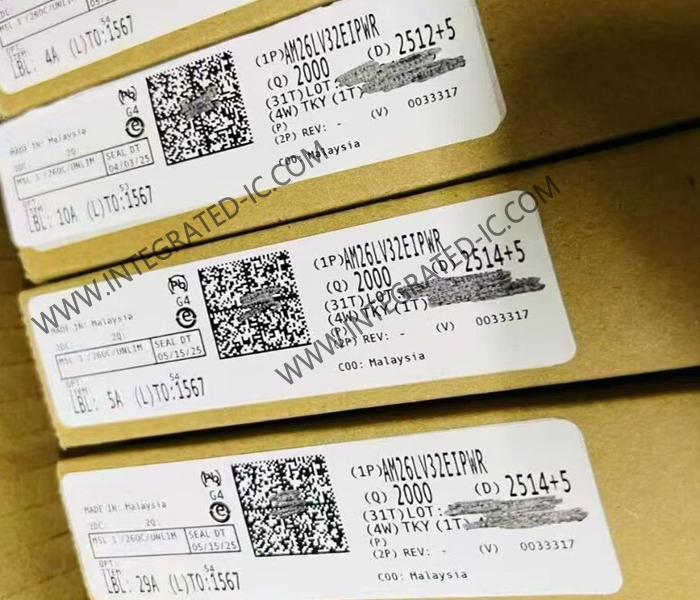

AM26LV32EIPWR Integrated Circuit Chip 35mV High Speed Quadruple Differential Line Receiver

AM26LV32EIPWR Integrated Circuit Chip 35mV High Speed Quadruple Differential Line Receiver​

Product Description Of AM26LV32EIPWR

AM26LV32EIPWR consists of quadruple differential line receivers with 3-state outputs. AM26LV32EIPWR is designed to meet TIA/EIA-422-B and ITU recommendation V.11 drivers with reduced supply voltage. AM26LV32EIPWR is optimized for balanced bus transmission at switching rates up to 32 MHz. The 3-state outputs permit connection directly to a bus-organized system.

Specification Of AM26LV32EIPWR

Features Of AM26LV32EIPWR

Operates from a single 3.3-V power supply
Switching rates up to 32 MHz
ESD Protection for RS422 bus pins (See ESD Ratings)
Low power dissipation: 27 mW typical
Open circuit fail-safe
±7-V Common-mode input voltage range with ±200-mV sensitivity
Accepts 5-V logic inputs with 3.3-V supply (enable inputs)
Input hysteresis: 35 mV typical
Pin-to-pin compatible with AM26C32, AM26LS32
I off Supports partial-power-down mode operation

Applications Of AM26LV32EIPWR
High-reliability automotive applications
Configuration control and print support
ATM and cash counters
Smart grid
AC and servo motor drives
