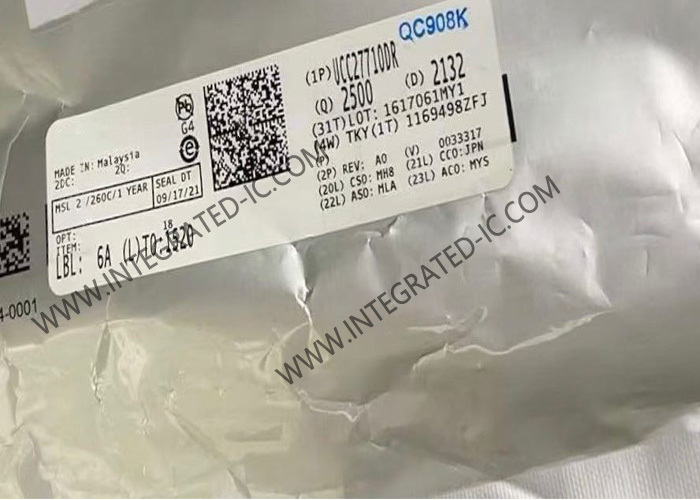

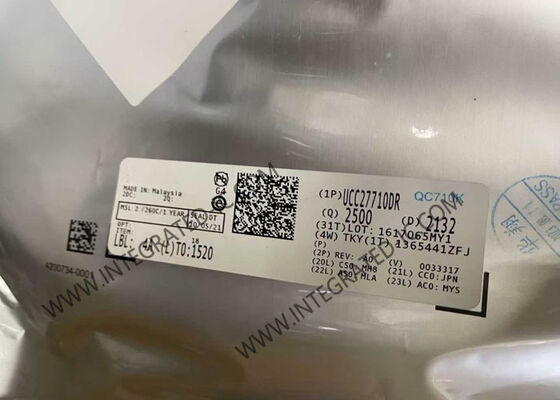

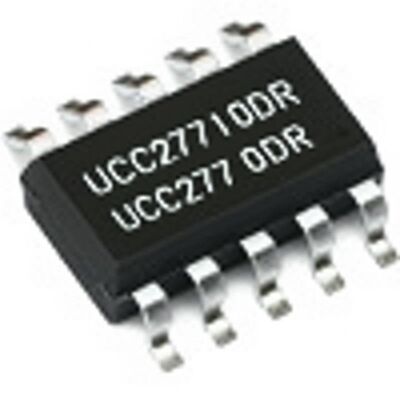

UCC27710DR Integrated Circuit Chip 620V Half Bridge Driver SOIC8 Gate Drivers

UCC27710DR Integrated Circuit Chip 620V Half Bridge Driver SOIC8 Gate Drivers​

Product Overviews Of UCC27710DR

UCC27710DR is a 620-V high-side and low-side gate driver with 0.5-A source, 1.0-A sink current, targeted to drive power MOSFETs or IGBTs. The recommended VDD operating voltage is 10-V to 20-V for IGBT’s and 10-V to 17-V for power MOSFETs.

Specification Of UCC27710DR

Features Of UCC27710DR

High-Side and Low-Side Configuration
Dual Inputs With Output Interlock and 150-ns Deadtime
Fully Operational up to 620-V, 700-V Absolute Maximum on HB Pin
10-V to 20-V VDD Recommended Range
Peak Output Current 0.5-A Source, 1.0-A Sink
dv/dt Immunity of 50 V/ns
Logic Operational up to –11 V on HS Pin
Negative Voltage Tolerance On Inputs of –5 V
Large Negative Transient Safe Operating Area
UVLO Protection for Both Channels
Small Propagation Delay (140 ns Typical)
Delay Matching (8 ns Typical)
Floating Channel Designed for Bootstrap Operation
Low Quiescent Current
TTL and CMOS Compatible Inputs
Industry Standard SOIC-8 Package
All Parameters Specified Over Temperature Range, –40 °C to +125 °C

Applications Of UCC27710DR
Motor Drive (Stepper Motors, HVAC, Fans, Power Tools, Robotics, Drones, Servos)
Lighting, LED Power Supply, Indoor Lighting
Appliances, Washer & Dryer, Refrigerator
Induction Heating
DC-to-AC Inverters

Other Electronic Components In Stock

FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
