IKW75N60T Integrated Circuit Chip 600V 75A IGBT Discrete PG-TO247-3 IGBT Transistors

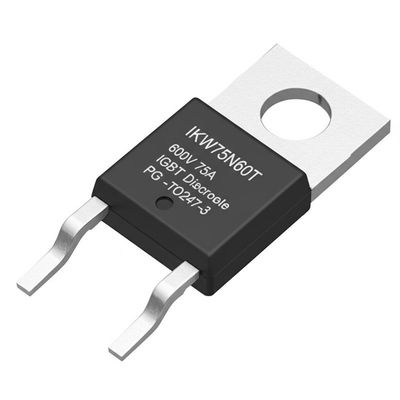

Large Image : IKW75N60T Integrated Circuit Chip 600V 75A IGBT Discrete PG-TO247-3 IGBT Transistors

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	IKW75N60T

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	PG-TO247-3
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

IKW75N60T Integrated Circuit Chip 600V 75A IGBT Discrete PG-TO247-3 IGBT Transistors

Description

Part Number:	IKW75N60T	Collector- Emitter Voltage VCEO Max:	600 V
Collector-Emitter Saturation Voltage:	1.5 V	Maximum Gate Emitter Voltage:	- 20 V, 20 V
Continuous Collector Current At 25℃:	80 A	Pd - Power Dissipation:	428 W
Highlight:	600V 75A IGBT transistor , PG-TO247-3 IGBT chip , discrete IGBT integrated circuit

IKW75N60T Integrated Circuit Chip 600V 75A IGBT Discrete PG-TO247-3 IGBT Transistors

Product Attributes

Attribute	Value
Part Number	IKW75N60T
Collector- Emitter Voltage VCEO Max	600 V
Collector-Emitter Saturation Voltage	1.5 V
Maximum Gate Emitter Voltage	- 20 V, 20 V
Continuous Collector Current at 25℃	80 A
Pd - Power Dissipation	428 W

Product Description

IKW75N60T Hard-switching 600 V, 75 A TRENCHSTOP™ IGBT3 copacked with full-rated free-wheeling diode in a TO-247 package, leads to significant improvement of static as well as dynamic performance of the IKW75N60T, due to combination of trench-cell and fieldstop concept. The combination of IGBT with soft recovery emitter controlled diode further minimizes the turn-on losses. The highest efficiency is reached due to the best compromise between switching and conduction losses.

Specifications

Parameter	Value
Series	TRENCHSTOP™
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector (Ic) (Max)	80 A
Current - Collector Pulsed (Icm)	225 A
Vce(on) (Max) @ Vge, Ic	2V @ 15V, 75A
Power - Max	428 W
Switching Energy	4.5mJ
Input Type	Standard
Gate Charge	470 nC
Td (on/off) @ 25°C	33ns/330ns
Test Condition	400V, 75A, 5Ohm, 15V
Reverse Recovery Time (trr)	121 ns
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	PG-TO247-3-1

Features

Lowest VCEsatdrop
Low switching losses
Positive temp. coeffi. in VCEsat
Easy parallel switching capability
Very soft, fast recovery diode
High ruggedness
Temperature stable behavior
Low EMI emissions
Low gate charge
Very tight parameter distribution

Applications

Home appliances
Telecommunications infrastructure
Photovoltaic
Motor control and drives
Uninterruptible power supplies (UPS)
