INA194AIDBVR Integrated Circuit Chip 500kHz High-Side Current Sense Amplifier with 3% Accuracy

INA194AIDBVR Integrated Circuit Chip 500kHz High-Side Current Sense Amplifier with 3% Accuracy
INA194AIDBVR Integrated Circuit Chip 500kHz High-Side Current Sense Amplifier with 3% Accuracy

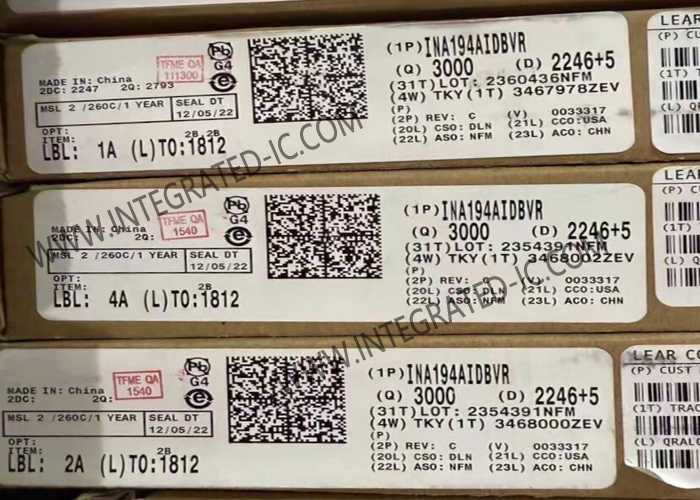

Large Image :  INA194AIDBVR Integrated Circuit Chip 500kHz High-Side Current Sense Amplifier with 3% Accuracy

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: INA194AIDBVR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SOT-23-5
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

INA194AIDBVR Integrated Circuit Chip 500kHz High-Side Current Sense Amplifier with 3% Accuracy

Description
Part Number: INA194AIDBVR Sensing Method:: High Side
Supply Voltage - Max:: 18 V Supply Voltage - Min:: 2.7 V
Operating Supply Current:: 900 UA Accuracy:: 3 %
Highlight:

INA194AIDBVR

,

INA194AIDBVR Integrated Circuit Chip

,

500kHz High-Side Current Sense Amplifier

INA194 Integrated Circuit Chip 500kHz High-Side Current Sense Amplifier
Product Overview Of INA194

The INA194 is a current shunt monitor with voltage output that can sense drops across shunts at common-mode voltages from -16V to +80V, independent of the supply voltage. Available with three output voltage scales: 20 V/V, 50 V/V, and 100 V/V. The 500 kHz bandwidth simplifies use in current control loops.

Specifications Of INA194
Function Current Monitor
Sensing Method High-Side
Accuracy ±3%
Voltage - Input -16V ~ 80V
Operating Temperature -40°C ~ 125°C
Key Features Of INA194
  • Wide Common-Mode Voltage: −16V to +80V
  • Low Error: 3.0% Over Temperature (maximum)
  • Bandwidth: Up to 500 kHz
  • Three Transfer Functions Available: 20 V/V, 50 V/V, and 100 V/V
  • Quiescent Current: 900 μA (maximum)
  • Complete Current Sense Solution
Applications Of INA194
  • Welding Equipment
  • Notebook Computers
  • Cell Phones
  • Telecom Equipment
  • Automotive
  • Power Management
  • Battery Chargers
