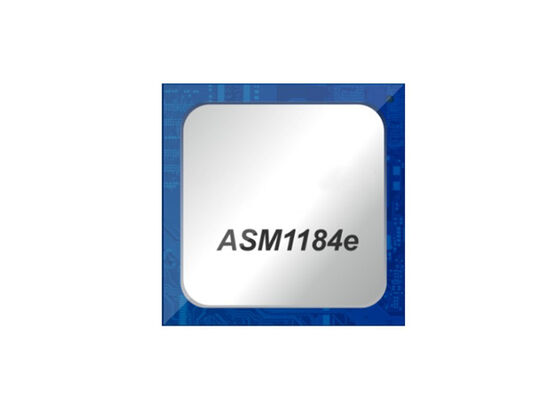

ASM1184E Integrated Circuit Chip PCIe x1 Gen2 To 4 PCIe x 1 Gen2 PCIe Bridge Chip

ASM1184E Integrated Circuit Chip PCIe x1 Gen2 To 4 PCIe x 1 Gen2 PCIe Bridge Chip

Product Description
ASM1184E is PCI express packet switch, 1 PCIe x1 Gen2 upstream port to 4 PCIe x 1 Gen2 downstream ports, enable users to extend PCIe ports on mother board or embedded system. PCIe interface of ASM1184e is PCIe Base SPEC 2.0 compliance.

Features
Standard Compliant
PCI express base SPEC 2.0 and backward compatible with SPEC 1.1 & 1.0a
PCI Power management SPEC 1.2
Port configuration
1 PCIe x1 lane Gen2 upstream port to 4 PCIe x1 lane Gen2 downstream ports
PCIe power management
Link state L0, L0s, L1, L2/L3 Ready and L3
Device state D0, D3 hot
Short latency delay
ntegrate 100MHz PCIe differential clock buffer, no extra clock buffer needed.
Support I2C interface for debug usage
9 x 9 QFN64 RoHS package

Other Electronic Components In Stock

FAQ
Q: Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample?Is the sample free?
A: Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
