Microcontroller MCU LPC804M101JHI33 32-Bit Single-Core 15MHz Microcontroller IC

Microcontroller MCU LPC804M101JHI33 32-Bit Single-Core 15MHz Microcontroller IC

Product Description Of LPC804M101JHI33

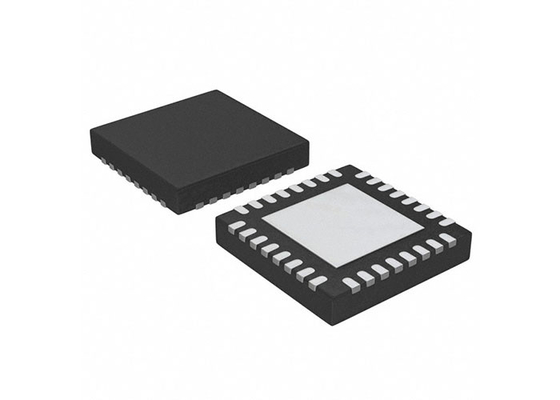

LPC804M101JHI33 is an Arm Cortex-M0+ based, low-cost 32-bit MCU family operating at CPU frequencies of up to 15 MHz. The LPC804M101JHI33 supports 32 KB of flash memory and 4 KB of SRAM.

Specification Of LPC804M101JHI33

Features Of LPC804M101JHI33

• Supports Flash In-Application Programming (IAP).

• Supports In-System Programming (ISP) through USART.

• On-chip ROM APIs for integer divide.

• Free Running Oscillator (FRO) API.

• Up to 32 KB on-chip EEPROM based flash programming memory.

• Code Read Protection (CRP).

• Arm Cortex-M0+ built-in Nested Vectored Interrupt Controller (NVIC).

• System tick timer.

• AHB multilayer matrix

• Wake-up from deep power-down mode on multiple pins.

• Timer-controlled self wake-up from sleep, deep-sleep, and power-down modes.

• Power-On Reset (POR).

• Brownout detect (BOD).

• Unique device serial number for identification.

• Single power supply (1.71 V to 3.6 V).

• Operating temperature range -40 °C to +105 °C.

Applications Of LPC804M101JHI33

• Sensor gateways

• Simple motor control

• Industrial

• Portables and wearables

• Gaming controllers

• Lighting

• 8/16-bit applications

• Motor control

• Consumer

• Fire and security applications

• Climate control
