Product Details:
|
| Operating Frequency: | 2.4 GHz, 5 GHz | NF—Noise Figure: | 2.6 DB, 2.5 DB |
|---|---|---|---|
| Operating Supply Voltage: | 5 V | Gain: | 29 DB, 33 DB |

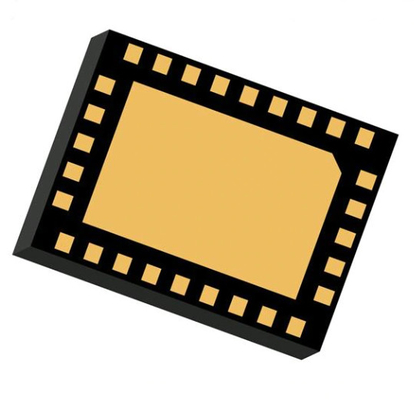

| Package/Case: | LGA-28 | Series: | QPF4800 |
| Highlight: | QPF4800 WIFI 6 Chip,WIFI 6 Chip 5GHz,RF IC Front End 5GHz |
||

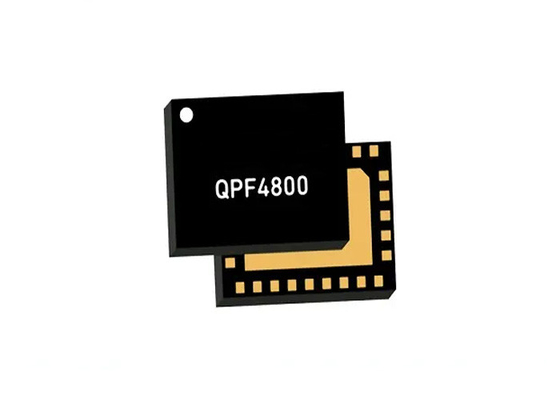

WIFI 6 Chip QPF4800TR13 RF Front End 5GHz Wi-Fi 6 Front End Module
Product Description
The QPF4800 is an integrated dual band front end module (FEM) designed for Wi-Fi 6 systems. The compact form factor and integrated matching minimizes layout area in the application. Performance is focused on optimizing the 2.4GHz and 5GHz PAs for a 5V supply voltage that conserves power consumption while maintaining the highest linear output power and leading edge throughput. Receive path matches the optimal technologies to maximize Rx sensitivity through noise figure performance that is consistent over a wider variety of conditions. Another key feature is the broad range integrated DC power detector which enables power accuracy at lower powers.
The QPF4800 integrates a 2.4GHz and 5GHz power amplifier (PA), regulator, two single pole two throw switches (SP2T), diplexer, and 2.4GHz and 5GHz bypassable low noise amplifiers (LNA).
Key Features
Applications
Functional Block Diagram
