Product Details:
|
| Part Number: | FF800R12KE7 | Series: | TrenchStop™ |
|---|---|---|---|
| IGBT Type: | Trench Field Stop | Configuration: | Half Bridge |
| Voltage - Collector Emitter Breakdown (Max): | 1200 V | Current - Collector (Ic) (Max): | 800 A |
| Operating Temperature: | -40°C ~ 175°C (TJ) | Category: | Discrete Semiconductor Products Transistors - IGBTs - Modules |
| Highlight: | TrenchStop Automotive IGBT Modules,Automotive IGBT Modules 1200 V 800 A,800 A Dual IGBT Module |
||

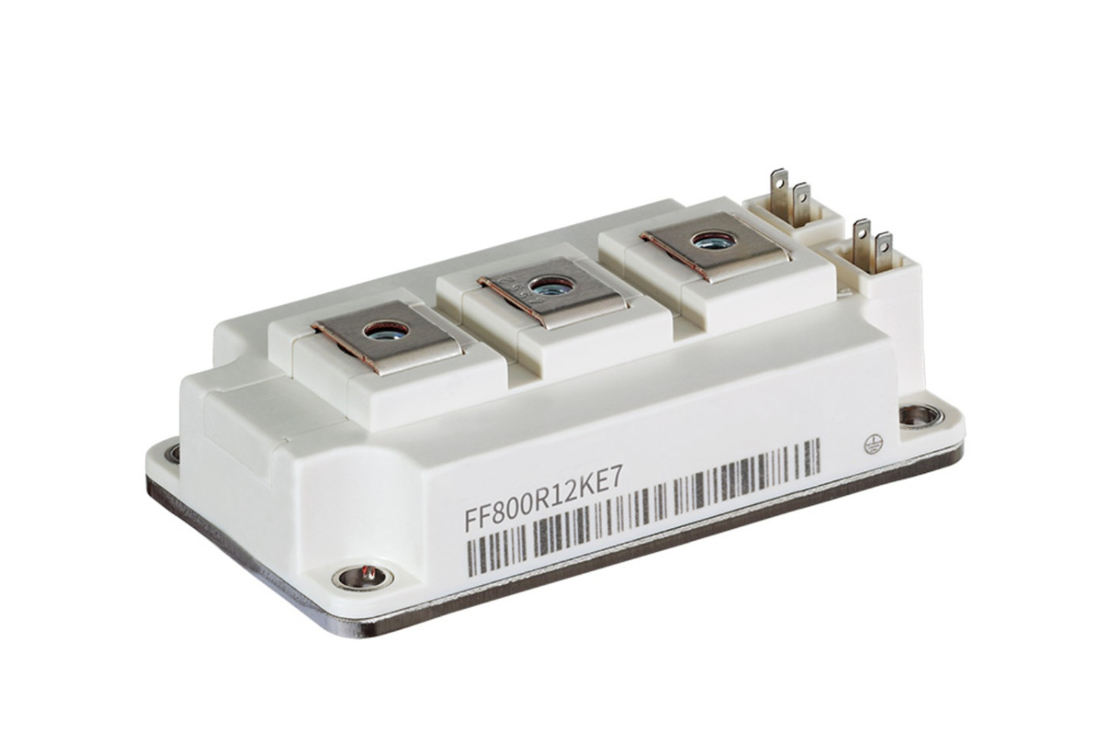

FF800R12KE7 TrenchStop Automotive IGBT Modules 1200V 800A Dual IGBT Module
Overview
62 mm 1200 V, 800 A dual low sat & fast trench IGBT module with TRENCHSTOP™ IGBT7 and emitter controlled 7 diode.
Summary of Features
Parametrics
| Configuration: | Dual | Housing: | 62 mm |
|---|---|---|---|
| IC(nom) / IF(nom): | 800 A | IC max: | 800 A |
| Qualification: | Industrial | Technology: |
IGBT7 - E7
|
| VCE(sat) (Tvj=25°C typ): | 1.5 V | VF (Tvj=25°C typ): | 1.8 V |
Benefits
Applications
Diagrams
FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
