Product Details:
|
| Category: | PMIC Full Half-Bridge Drivers | Series: | CoolGaN™ |
|---|---|---|---|
| Applications: | General Purpose | Rds On: | 140mOhm LS 140mOhm HS |
| Interface: | Logic, PWM | Mounting Type: | Surface Mount |
| Supplier Device Package: | PG-TIQFN-28-1 | Base Product Number: | IGI60F |
| Highlight: | GaN IC IGI60F1414A1LAUMA1,Half Bridge Driver GaN IC,IGI60F1414A1L CoolGaN |
||

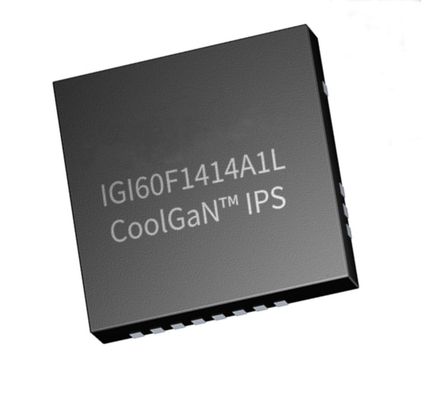

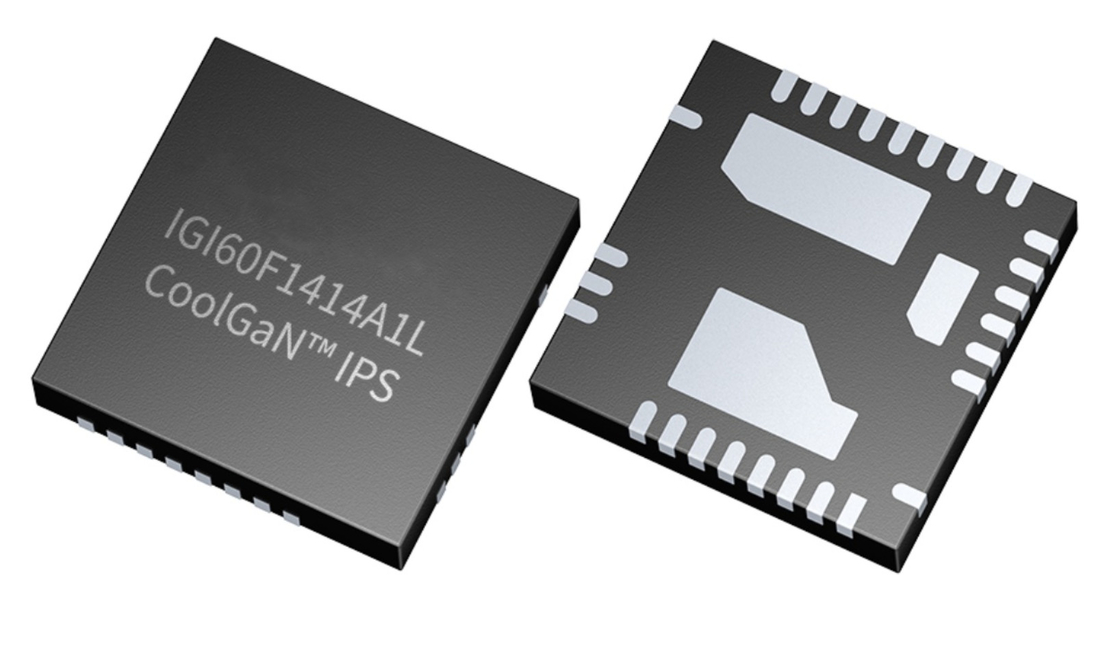

GaN IC IGI60F1414A1L IGI60F1414A1LAUMA1 Half Bridge Driver General Purpose
Product Description
IGI60F100A1L combines a single 100 mΩ (typ.) / 600 V enhancement-mode CoolGaN™ switch with a dedicated gate driver in a thermally enhanced 8 x 8 mm QFN-21 package. Due to the galvanic functional isolation between input and output, the power stage can cover a broad spectrum of applications and topologies.
CoolGaN™ power switches provide a very robust gate structure. When driven by a continuous gate current of a few mA in the “on” state, a minimum on-resistance RDS(on) is always guaranteed, independent of temperature and parameter variations.
| Parametrics | IGI60F100A1L |
| ID (@25°C) max | 12.8 A |
| Mounting | SMT |
| QG | 3.1 nC |
| RDS (on) max | 130 mΩ |
Benefits
| Category: | PMIC Full Half-Bridge Drivers | Series: | CoolGaN™ |
|---|---|---|---|
| Applications: | General Purpose | Rds On: | 140mOhm LS 140mOhm HS |
| Interface: | Logic PWM | Mounting Type: | Surface Mount |
| Supplier Device Package: | PG-TIQFN-28-1 | Base Product Number: | IGI60F |
Applications
AC-DC Converters
DC-DC Converters
Uninterruptible Power Supplies (UPS)
Power adaptors
LED lighting
Solar micro inverters
