Product Details:
|
Output Current: | 1.2 A | Supply Voltage - Min: | 7.5 V |
---|---|---|---|
Supply Voltage - Max: | 18 V | Rise Time: | 4 Ns |
Product Type: | Gate Drivers | Rds On - Drain-Source Resistance: | 30 MOhms |
Highlight: | LMG3422R030RQZR GaN FET,GaN FET 600V,600V Integrated Isolated GaN Gate Drivers |

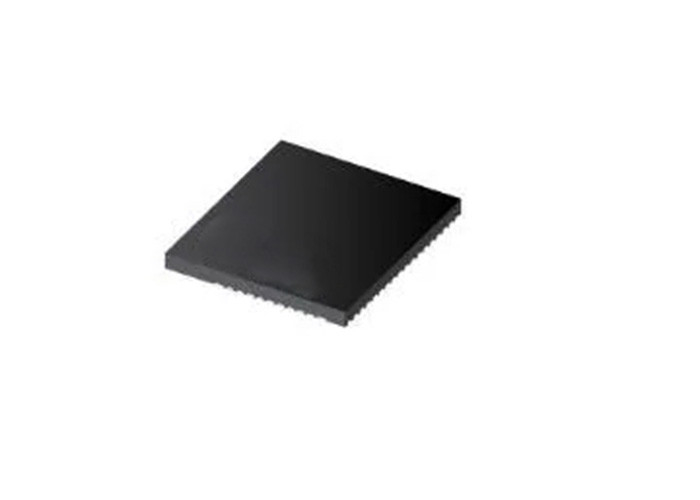

GaN IC LMG3422R030RQZR 600V 30mΩ GaN FET With Integrated Driver Isolated Gate Drivers
Description
LMG3422R030RQZR GaN FET with integrated driver and protection enables designers to achieve new levels of power density and efficiency in power electronics systems.
LMG3422R030RQZR integrates a silicon driver that enables switching speed up to 150 V/ns. Integrated precision gate bias results in higher switching SOA compared to discrete silicon gate drivers. This integration, combined with lowinductance package, delivers clean switching and minimal ringing in hard-switching power supply topologies. Adjustable gate drive strength allows control of the slew rate from 20 V/ns to 150 V/ns, which can be used to actively control EMI and optimize switching performance. The LMG3425R030 includes ideal diode mode, which reduces thirdquadrant losses by enabling adaptive dead-time control.
Specifications
Type: | Inverting, Non-Inverting | Package : | VQFN-54 |
---|---|---|---|
Supply Voltage: | 7.5 V - 18 V | Operating Temperature: | -40°C ~ 125°C |
Rise Time: | 2.5 Ns | Fall Time: | 21 Ns |
Features
Applications
Pin Configuration and Functions
