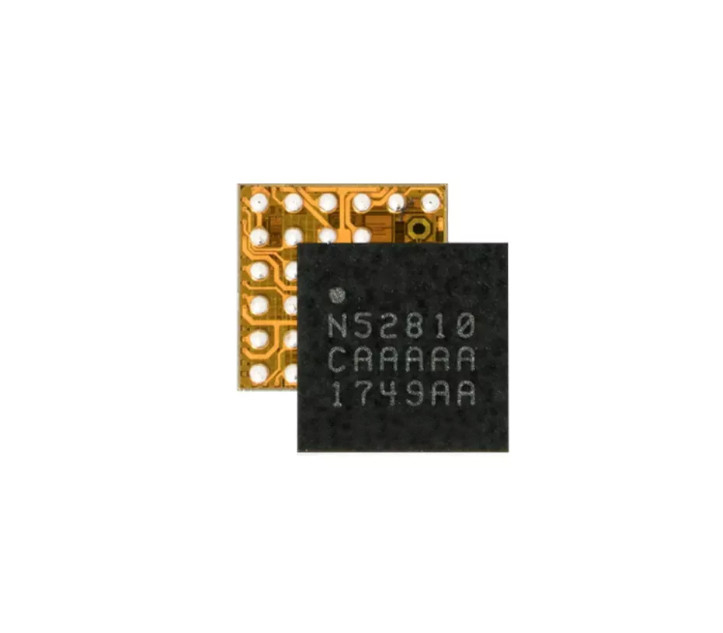

BT IC Chip NRF52810-CAAA-R NRF52810 Low Energy UFBGA33 RF Transceiver ICs

BT IC Chip NRF52810-CAAA-R NRF52810 Low Energy UFBGA33 RF Transceiver ICs

Product Description

NRF52810-CAAA-R System-on-Chip (SoC) is a baseline member of the NRF52 Series. It meets the challenge of bringing advanced BT LE features and protocol concurrency to applications at a price point that makes adding BT LE connectivity to an application compelling. It is an ideal candidate for less complex applications and also as a BT LE connectivity processor in larger applications.

Specification Of NRF52810-CAAA-R

Features

• 2.4 GHz transceiver
• -96 dBm sensitivity in BT low energy mode
• Supported data rates: 1 Mbps, 2 Mbps BT low energy mode
• -20 to +4 dBm TX power, configurable in 4 dB steps
• On-chip balun (single-ended RF)
• 4.6 mA peak current in TX (0 dBm)
• 4.6 mA peak current in RX
• RSSI (1 dB resolution)
• ARM Cortex - M4 32-bit processor, 64 MHz
• 144 EEMBC CoreMark score running from flash memory
• 34.4 µA/MHz running CoreMark from flash memory
• 32.8 µA/MHz running CoreMark from RAM memory
• Serial wire debug (SWD)
• Flexible power management
• 1.7 V to 3.6 V supply voltage range
• Fully automatic LDO and DC/DC regulator system
• Fast wake-up using 64 MHz internal oscillator
• 0.3 µA at 3 V in System OFF mode, no RAM retention
• 0.5 µA at 3 V in System OFF mode with full 24 kB RAM retention
• 1.5 µA at 3 V in System ON mode, with full 24 kB RAM retention, wake on RTC
• 1.4 µA at 3 V in System ON mode, no RAM retention, wake on RTC

Applications

• Computer peripherals and I/O devices
• Mouse
• Keyboard
• Mobile HID
• CE remote controls
• Network processor
• Wearables
• Virtual reality headsets
• Health and medical
• Enterprise lighting
• Industrial
• Commercial
• Retail
• Beacons
• Connectivity device in multi-chip solutions
