System On Chip NRF52811-CAAA-R NRF52811 WLCSP33 BT Direction Finding And Thread

System On Chip NRF52811-CAAA-R NRF52811 WLCSP33 BT Direction Finding And Thread

Product Description

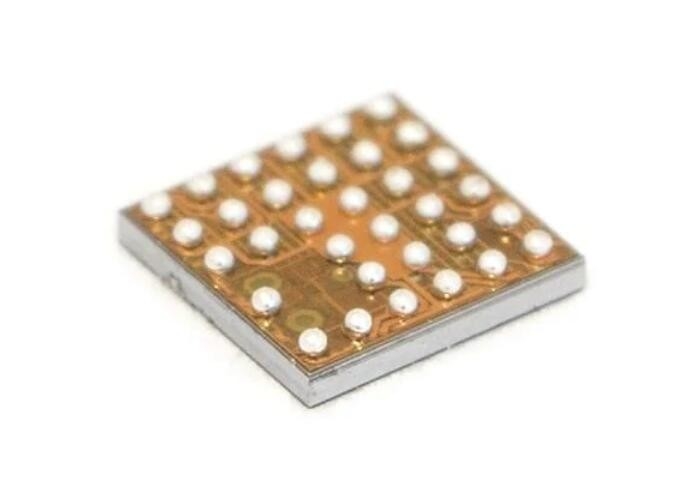

NRF52811-CAAA-R SoC comes in our smallest package, a 2.48x2.46 mm WLCSP package, together with two QFN packages. It is drop-in compatible with the nRF52810 SoC in all package variants:

6x6 mm QFN48 with 32 GPIOs
5x5 mm QFN32 with 17 GPIOs
2.48x2.46 mm WLCSP32 with 15 GPIOs

Specification Of NRF52811-CAAA-R

Features

• Flexible power management
• 1.7 V to 3.6 V supply voltage range
• Fully automatic LDO and DC/DC regulator system
• Fast wake-up using 64 MHz internal oscillator
• 0.3 µA at 3 V in System OFF mode, no RAM retention
• 0.5 µA at 3 V in System OFF mode with full 24 kB RAM retention
• 1.5 µA at 3 V in System ON mode, with full 24 kB RAM retention, wake on RTC
• 1.4 µA at 3 V in System ON mode, no RAM retention, wake on RTC
• 192 kB flash and 24 kB RAM
• Support for concurrent multi-protocol
• 12-bit, 200 ksps ADC - 8 configurable channels with programmable gain
• 64 level comparator
• Temperature sensor
• Up to 32 general purpose I/O pins
• 4-channel pulse width modulator (PWM) unit with EasyDMA
• Digital microphone interface (PDM)
• 3x 32-bit timer with counter mode
• 2x SPI master/slave with EasyDMA
• I2C compatible 2-wire master/slave
• UART (CTS/RTS) with EasyDMA
• Programmable peripheral interconnect (PPI)
• Quadrature decoder (QDEC)
• AES HW encryption with EasyDMA
• 2x real-time counter (RTC)
• Single crystal operation

Applications

• Industrial
• Commercial
• Retail
• Beacons
• Connectivity device in multi-chip solutions
